CLD1AC

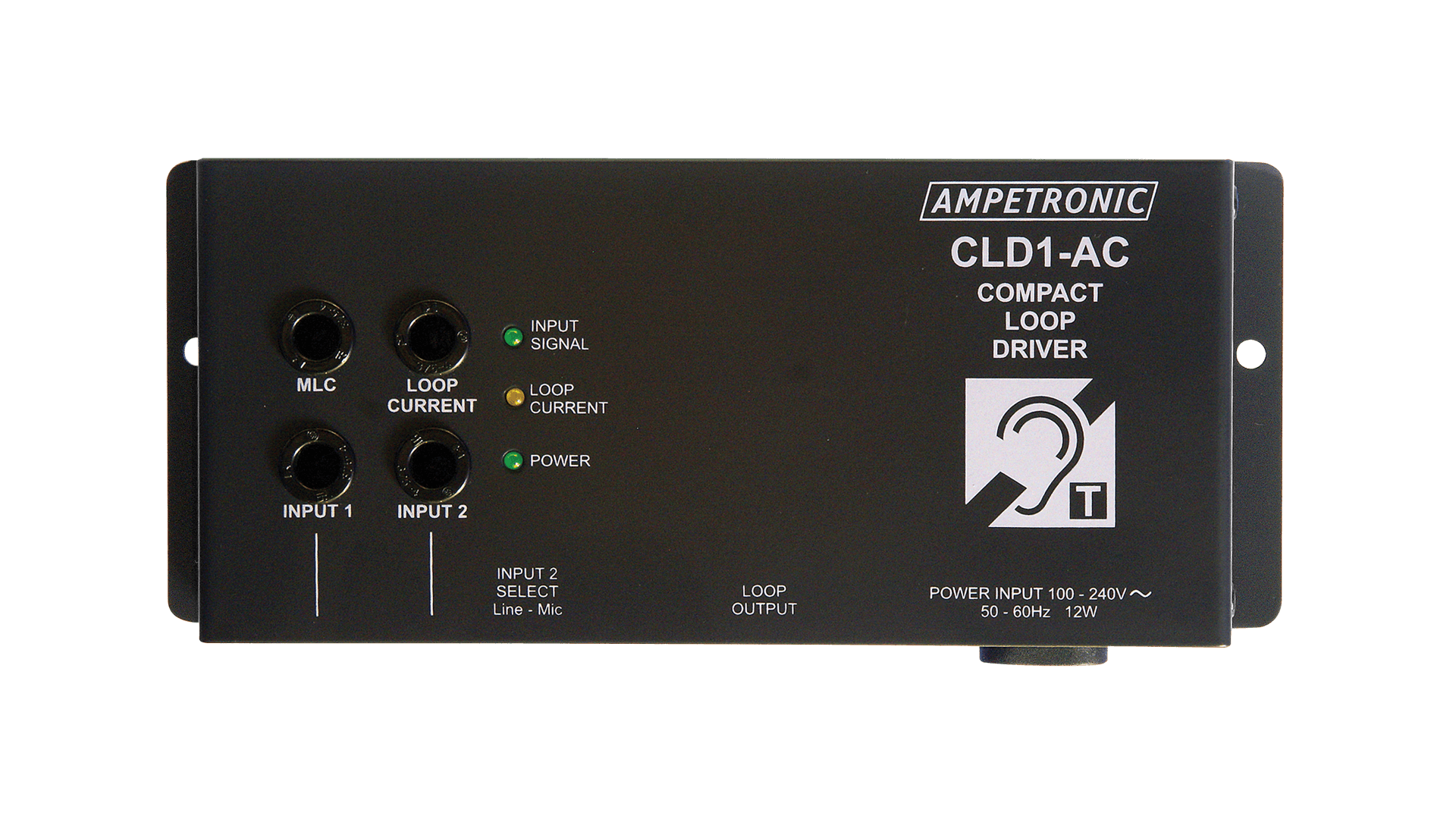

CLD1AC small area and counter loop driver

CLD1 small area and counter loop driver
Part code: CLD1AC (see below for kits)

The CLD1 small area and counter loop driver is designed for counter systems and small area perimeter loop systems. Measuring only 128 x 74 x 35mm and with an output current of 2.4A RMS, the CLD1 is the smallest and highest performance amplifier in its class.

The Ampetronic CLD1AC is designed for the same applications and to the same specifications as the CLD1, however the CLD1AC is fitted with an internal power supply for standalone applications.

hidden tab
Features
  • Low lifetime cost
  • 5 Year warranty
  • Very compact
  • Choice of microphone and pre-formed loop in counter kit
  • 2 independent inputs featuring 1 mic input and 1 switchable mic/line input
  • Metal loss compensation
  • All connections to a single face for installation convenience
  • Integral power supply
  • Free technical support
Specifications (PDF)

Click here to open datasheet in a new tab

CLD1AC small area and counter loop driver

Designed and built to Ampetronic’s high standards of reliability, backed with a 5 year warranty and Ampetronic support, the CLD1 offers certainty of performance and the lowest lifetime cost available.

Audio quality is ensured with metal loss correction (MLC) combined with Ampetronic’s usual high standards of design. The CLD1 is designed for flexibility and convenience, featuring 2 separate microphone inputs with independent level controls, one of which can be configured as a line input.

All cable connections are made on a single face of the unit, adding flexibility and further simplifying installation.

Applications include

  • Ticket and service counters
  • Retail counters
  • Information kiosks
  • Reception desks
  • Interview rooms
  • Small meeting rooms
  • Taxis and private cars

Kit Forms

The CLD1AC compact loop driver can be ordered as a stand alone loop driver or as part of a kit for a specific application.

Counter loop kits comprise 1 x CLD1AC, 1 x pre-formed loop, 1 x microphone (choice), 1 x loop present sign, 1 x installation guide and 1 x power supply (region specific).

Kit code Contents
ACCLD001UKCB  CLD1-AC Induction Loop Driver UK Cordset with Q400 Boundary Mic + Loop Coil
ACCLD001UKCD     CLD1-AC Induction Loop Driver UK Cordset with EM195A Desktop Mic + Loop Coil
ACCLD001UKCT     CLD1-AC Induction Loop Driver UK Cordset with EM-1.2 Tie-clip Mic + Loop Coil
ACCLD001UKCX     CLD1-AC Induction Loop Driver UK Cordset no Mic, with Loop Coil
ACCLD001UKXX     CLD1-AC Induction Loop Driver UK Cordset, no Mic, no Loop Coil
  • Low lifetime cost
  • 5 Year warranty
  • Very compact
  • Choice of microphone and pre-formed loop in counter kit
  • 2 independent inputs featuring 1 mic input and 1 switchable mic/line input
  • Metal loss compensation
  • All connections to a single face for installation convenience
  • Integral power supply
  • Free technical support

Counter Loops

When supplied as a counter loop kit, the CLD1AC comes with choice of microphone, a multi-turn preformed loop, power supply and simple installation instructions. The loop should be mounted vertically in accordance with the installation instructions. Other installation methods are also available.

The CLD1AC in this application will project a field to the requirements of IEC60118-4 approximately 1m from the preformed loop.

Perimeter Loops – Area Coverage (maximum)

The CLD1AC is designed for small perimeter loop applications in rooms or in vehicles. Coverage with a single turn loop:

Room aspect ratio:                         1:1      2:1       3:1
Maximum area coverage m2:       20      30        35

  • The CLD1 is DC powered making it ideal for use in small vehicles such as taxis, private cars and small boats. We recommend a multi-turn loop in the headlining of the vehicle cabin – contact Ampetronic for an application guide.The loop is 1-2m above or below the receiver height
  • There are no metal structures in the plane of the loop
  • There is sufficient voltage to drive the cable length – check table below.

Maximum Cable Length

With maximum current output the CLD1AC can drive:

  • Loops with DC resistance from 0.3 to 1.0Ω
  • Impedance up to a maximum of 1.3Ω

When operating below maximum output, the CLD1AC can drive longer cable lengths – contact Ampetronic for more details.

Maximum cable length is dependent on cable type and on the application.

Cable type Maximum Cable Length (m)
0.75mm2 copper 44
1.0mm2 copper 57
1.5mm2 copper 71
1.8mm2 flat copper tape 101m

CLD1 Specifications

INPUTS

Power All integral 100-240v AC 18W max.
Regional plug also available.
Green LED Power indicator
Input 1 Microphone input
Suitable for unbalanced electret microphone
3.5mm mono jack socket
Input impedance 8kΩ.
6v bias via 10kΩ source
Sensitivity -60 dBu for max output
Overload level -14 dBu.
Recessed control on front panel
Input 2 Switchable line / microphone
Recessed switch on connector panel
Microphone as for input 1
Line input:
Input impedance 820kΩ
Sensitivity -20dBu for max output
Overload: >+20dBu

OUTPUTS

Drive voltage >3.2Vrms >4.5Vpk at maximum output current
Drive current 2.4Arms 3.4Apk continuous 1kHz sine wave
Short term peak >4.8Apk
LED indicator on front panel
Loop resistance 0.3Ω to 1.0Ω resistive or
Loop connector Vibration proof clamps, accept 0.5 to 1.3mm2



THERMAL HEAT CHART

Idle 1/6 peak Output Current (Speech) 1/3 peak Output Current (Pink noise) Full Power
Driver  Channels Current (ARMS) Load Resistance (Ohms) AC In (W) BTU AC In (W) BTU AC In (W) BTU AC In (W) BTU
CLD1 1 2.4 0.5 0.6 2 4 13 8 22 13.704 37



AUDIO SYSTEM

Frequency response 80Hz to 6.3kHz ±1.5dB
Automatic gain control AGC optimised for speech
Dynamic range >36dB
Green LED indicator on front panel
Metal loss correction 0 to 4.5dB/octave
Recessed control on front panel

PHYSICAL

Cooling Natural convection
Dimensions 180mm, 74mm, 35mm
Weight 400g
Environment IP20 : 20 to 90% relative humidity, -20ºC to 50ºC
Mounting Horizontal or vertical panel or wall mount, with 2 screw fixings
