Loopworks Measure R1 field strength meter

Loopworks Measure R1
Part code: LOOPWORKS-R1

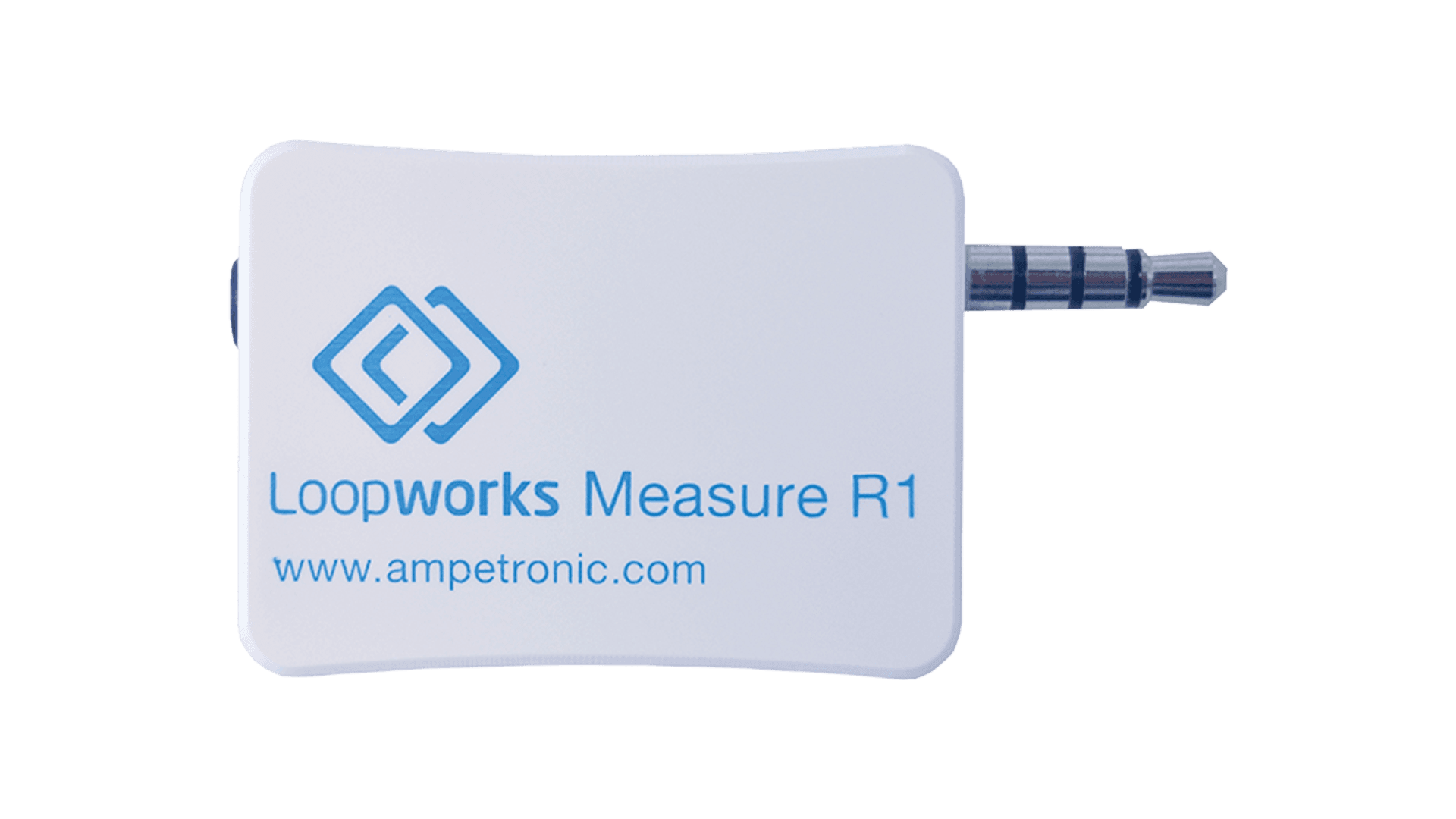

The R1 Receiver is a high quality audio induction loop receiver with a vertically mounted pick up coil. Designed to be used in conjunction with the Loopworks Measure iOS App the R1 Receiver and App together become the most accurate, dedicated field strength meter (FSM) available.

Ampetronic customers can now download their Measure App FREE from the iTunes store and order their Loopworks Measure R1 Receiver field strength meter. Please note that the Loopworks Measure iOS App is currently only available through iTunes store and will only run on an iOS device; that is an iPhone, iPod Touch or an iPad device running iOS 11 or higher.

hidden tab
Features
  • Calibration performed using uP device, which is not operational during measurement
  • Frequency response (±0.25 dB 50Hz to 8kHz), app brick wall filter beyond 10kHz
  • RMS detection with 125ms (F) integration time constant provided by host device and App
  • Power supply dependent on operation mode: either energy harvested host device audio output or derived from host device mic bias
  • Assessment of any system to IEC60118-4:2015
  • 1 year warranty
Specifications (PDF)

Click here to open datasheet in a new tab

Loopworks Measure R1 field strength meter



Price: £191.80 + VAT
(inc shipping)

Use the following Buy Now Link to order your receiver today.
You will be presented with the option to complete the transaction by card if you don't have a PayPal account.
For international customers PayPal will automatically convert the value to your local currency.

Customers in America can purchase a receiver directly from our local partner Williams AV

Customers in Australia can purchase a receiver directly from our local partner Jands Pty Ltd.





Applications include

  • Simple meter mode when not signed into Loopworks tests field strength, frequency response and background noise

When signed in to Loopworks

  • Synchronises data with Loopworks online database using host device data connection
  • Commissioning test: evaluates the complete performance of a system against IEC 60118-4 for certification
  • Quick check test: designed as a basic evaluation of a pre-installed system against IEC 60118-4
  • Freestyle test: evaluates the functional performance of a system against IEC 60118-4
  • Site assessment test: evaluates a site using a simple test loop and capture results to determine the type installation required.
  • LoopLink to connect the app to C Series and D Series networkable drivers

Included Accessories

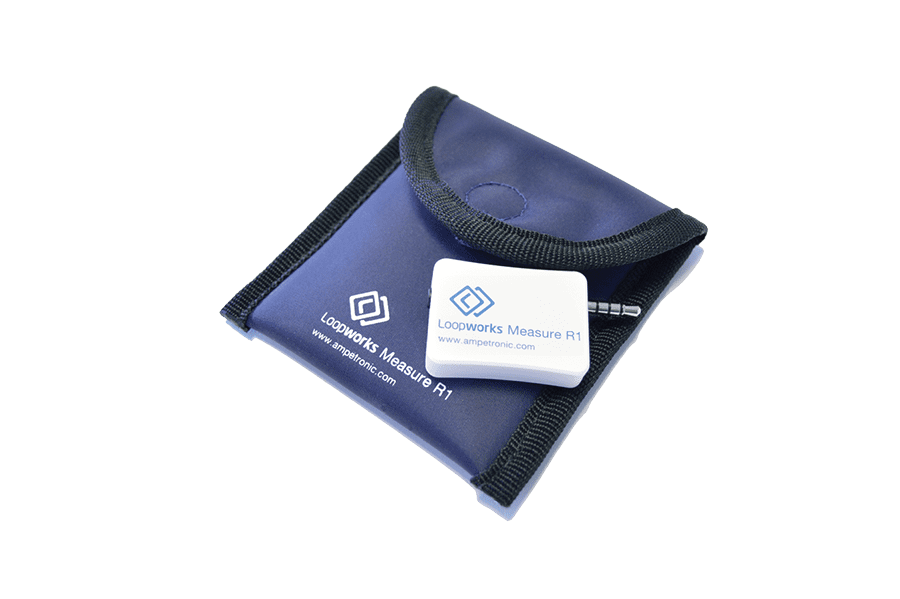

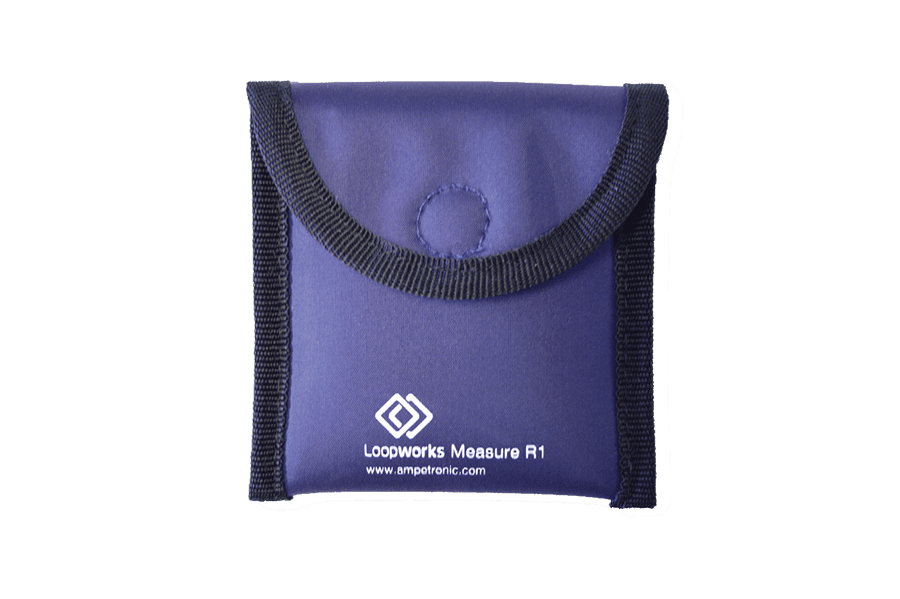

  • Soft carry pouch
  • User guide/handbook
  • Calibration certificate*

*Valid for 1 year from date of calibration. R1 units can be returned to Ampetronic or an approved repairer for re-calibration for a small fee. Please create a support ticket in Loopworks, contact sales@ampetronic.com or call +44 (0) 1636 610062 for more information.



  • Calibration performed using uP device, which is not operational during measurement
  • Frequency response (±0.25 dB 50Hz to 8kHz), app brick wall filter beyond 10kHz
  • RMS detection with 125ms (F) integration time constant provided by host device and App
  • Power supply dependent on operation mode: either energy harvested host device audio output or derived from host device mic bias
  • Assessment of any system to IEC60118-4:2015
  • 1 year warranty

Specifications

Magnetic field strength measurement

Coil orientation Vertical when receiver held upright
Reference level 400mA/m (In field strength mode)
Frequency response 50Hz to 8kHz ±0.25dB
40Hz to 10kHz ±0.5dB
30Hz to 15kHz ±3dB
Gain stability Better than ±0.25dB over all conditions

Inputs

Audio inputs 3.5mm 4-pole jack plug for connection to Apple device
3.5mm 3-pole jack socket for monitoring with stereo headphones (mono only)

Power: Calibration Test

Calibration Power < 100mW

Power: Measurement

Measurement Power < 1mW

Physical

Dimensions 52.0 x 27.5 x 9.5mm (R1 receiver only)
Weight 10g
Operating temperature range -10 to +45°C
Storage temperature range -20 to +75°C



hidden tab
Features
  • Calibration performed using uP device, which is not operational during measurement
  • Frequency response (±0.25 dB 50Hz to 8kHz), app brick wall filter beyond 10kHz
  • RMS detection with 125ms (F) integration time constant provided by host device and App
  • Power supply dependent on operation mode: either energy harvested host device audio output or derived from host device mic bias
  • Assessment of any system to IEC60118-4:2015
  • 1 year warranty
Specifications (PDF)

Click here to open datasheet in a new tab
