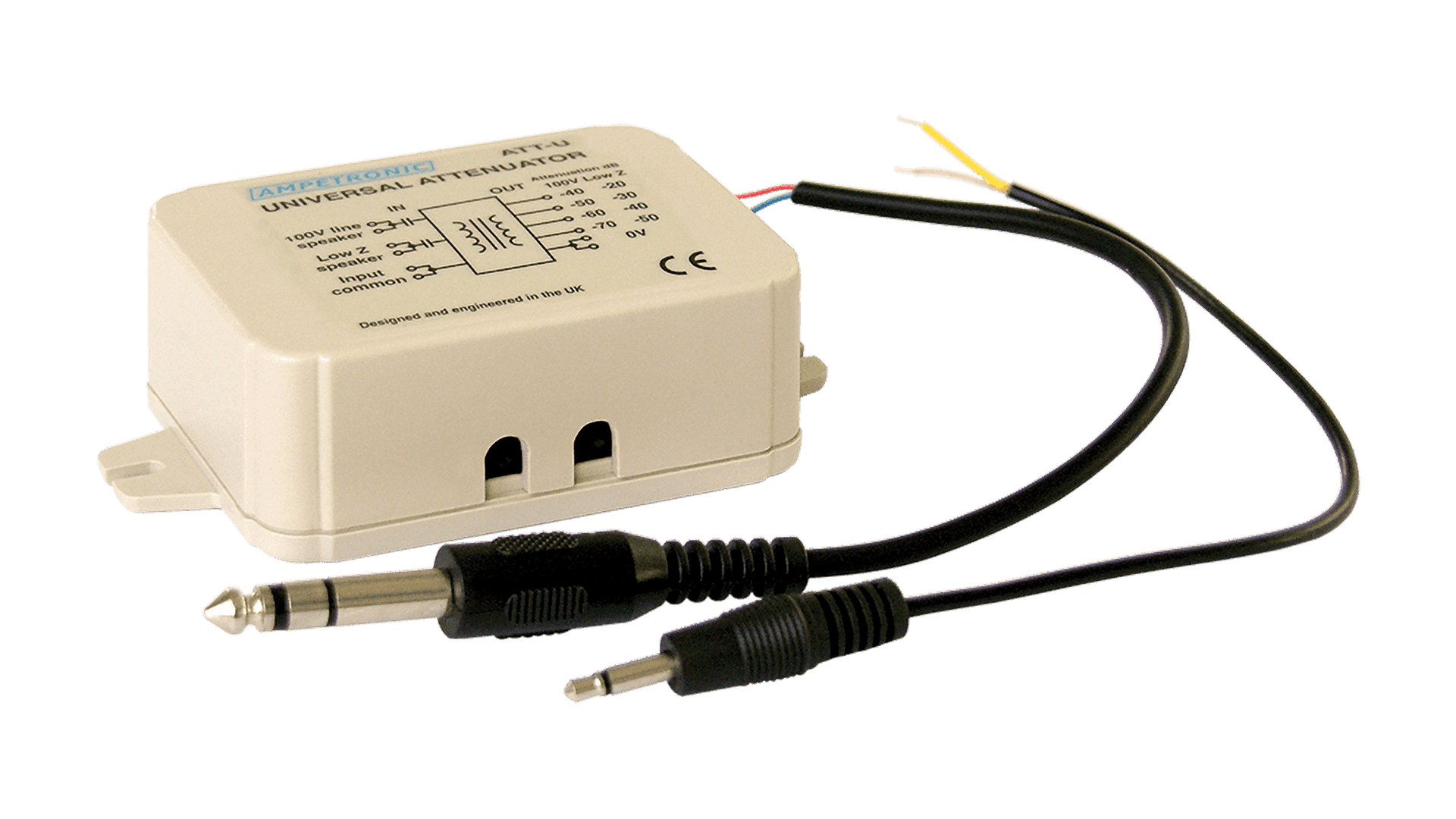

ATT-UJ speaker line input adaptor
Speaker Line Input Adaptor
Part code: ATT-UJ
The ATT-UJ Universal Attenuator is designed to interface a 100V line or low impedance (low Z) speaker systems to various inputs such as those found on Ampetronic equipment. In addition to transformer isolation, a range of attenuations are possible by connecting to the appropriate output terminals.
Compatible Audio Induction Loop Drivers: CLD1, ILD122, ILD300, ILD500 & ILD1000G
hidden tab
Specifications
| Inputs: | Screw terminals |
| Outputs: | Screw terminals |
| 3.5mm & 6.3mm jack cables included | |
| Max audio input: | 100V line: 100V AC, Low Z speaker: 10V AC |
| Attenuation: | 100V line: -70dB, -60dB, -50dB & -40dB |
| Low Z speaker: -50dB, -40dB, -30dB & -20dB |
Specifications (PDF)
Click here to open datasheet in a new tab
ATT-UJ speaker line input adaptor
| Inputs: | Screw terminals |
| Outputs: | Screw terminals |
| 3.5mm & 6.3mm jack cables included | |
| Max audio input: | 100V line: 100V AC, Low Z speaker: 10V AC |
| Attenuation: | 100V line: -70dB, -60dB, -50dB & -40dB |
| Low Z speaker: -50dB, -40dB, -30dB & -20dB |
hidden tab
Specifications
| Inputs: | Screw terminals |
| Outputs: | Screw terminals |
| 3.5mm & 6.3mm jack cables included | |
| Max audio input: | 100V line: 100V AC, Low Z speaker: 10V AC |
| Attenuation: | 100V line: -70dB, -60dB, -50dB & -40dB |
| Low Z speaker: -50dB, -40dB, -30dB & -20dB |
Specifications (PDF)
Click here to open datasheet in a new tab
