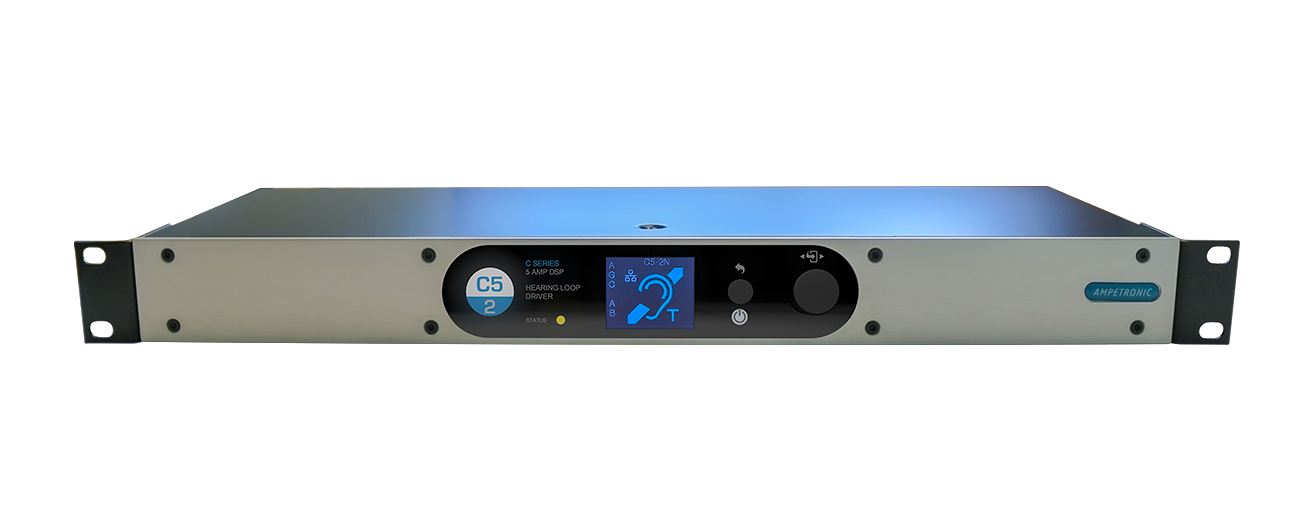

C5-2 MultiLoop hearing loop driver

The C5-2 Series hearing loop drivers from Ampetronic mark a substantial development in assistive listening technology. C Series units feature digital signal processing and networking functionality, and enable fast, accurate setup and adjustment via a very simple and easy to use user interface.

Ampetronic has engineered the C Series to offer the high end performance, consistency and certainty of results usually associated with top of the range induction loop drivers, all for the price of a mid-range amplifier. Class ‘D’ drivers built into the C Series ensures low running and maintenance costs.

Network versions enable installers, technicians and facilities managers to remotely control the driver and monitor its condition status along with resistance and induction measurements. Fault condition alerts via email or Telnet provide reassurance that an operator will be informed of any issues with performance delivery.

The C5-2 features 5 Amps RMS current loop output, plus ample voltage headroom, making it suitable for a wide range of applications. Installation can be performed with total confidence; unique, multi-stage filtering ensures compatibility with other systems and global EMC regulations. These products are designed to form part of a system that can meet all of the requirements of the international loop performance standard IEC60118-4, and the relevant parts of IEC TR 63079.

C Series hearing loop drivers applications include

Lecture Theatres & Conference facilities
Stadia, Sports Halls, Cinemas & Theatres
Courts Rooms, Airports & Railway Stations

Product Code:
C5-2
C5-2N (networkable)

You can also select from:

Perimeter loop drivers
C5-1 – ~5A_RMS output, single channel, 20VRMS
C7-1 – ~7A_RMS output, single channel, 20VRMS

MultiLoop drivers
C5-2 – ~5A_RMS output, two channels, 20VRMS
C7-2 – ~7A_RMS output, two channels, 20VRMS

Features
Specifications
Standards
Downloads

Simple digital interface enabling accurate adjustment
Single or dual output options. Dual outputs featuring accurate and stable 90° phase shiftHighly energy efficient Class-D amplifiers with low heat dissipation providing low running and maintenance costs
Networking with browser interface for remote reporting, adjustment, active status monitoring and remote fault reporting via email or Telnet
Built-in test tones – controllable with LoopLink
AGC and dual slope configurable MLC

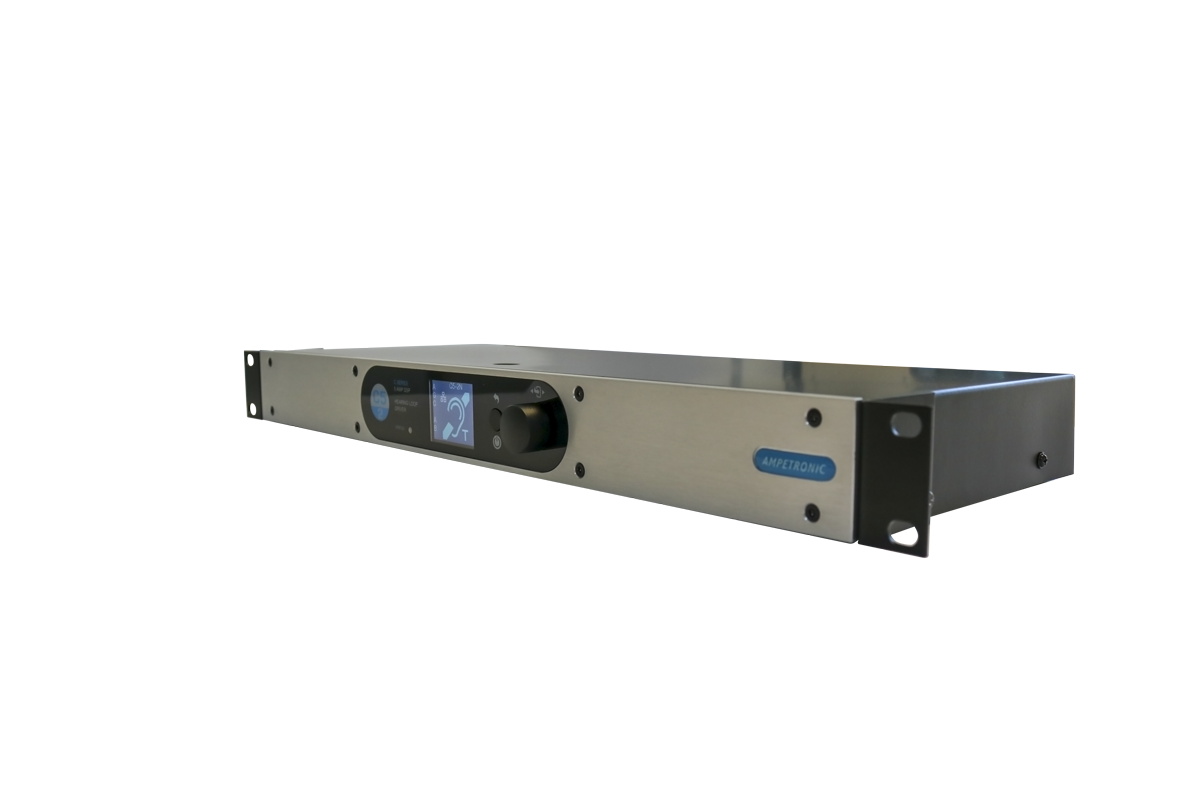

Compact 1U rack mount unit with internal transformer for simple rack installation
Optimised for speech frequencies with unmatched intelligibility and capable of high quality musical reproduction
Industry standard Phoenix connectors
Data compliant with IEC 62489-1 Standard
100V line input

Perimeter Loop Systems m²

Perimeter Loop Systems m²
Driver	Metal loss	Perimeter loop
C5-1	none	240
C5-1	moderate	Max 5m width
C5-2	none	2 x 240
C5-2	moderate	Max 5m width
C7-1	none	460
C7-1	moderate	Max 5m width
C7-2	none	2 x 460
C7-2	moderate	Max 5m width

MultiLoop Array Systems m²

MultiLoop Array Systems m²
Driver	Metal loss	Loss Control MultiLoop	Low Spill MultiLoop
C5-2	none	1089	900
	moderate	342	256
	high	–	–
C7-2	none	1089	900
	moderate	625	462
	high	289	210

Indicative metal loss scenarios are based on: Moderate – Calculated using “Concrete with moderate reinforcement” mode in Loopworks Design. Typical loss allowance of 5dB. High – Calculated using “Profiled Steel Deck” and “Metal System Floor” modes in Loopworks Design. Typical loss allowance of 9dB. All calculations based on square rooms. Perimeter loop systems modelled as single-turn loops using 2.5mm² single wire. Loops installed at height (essential in larger rooms). Multiloop systems modelled as floor-level installations using 3.0mm² Flat Copper Tape. *Optimised

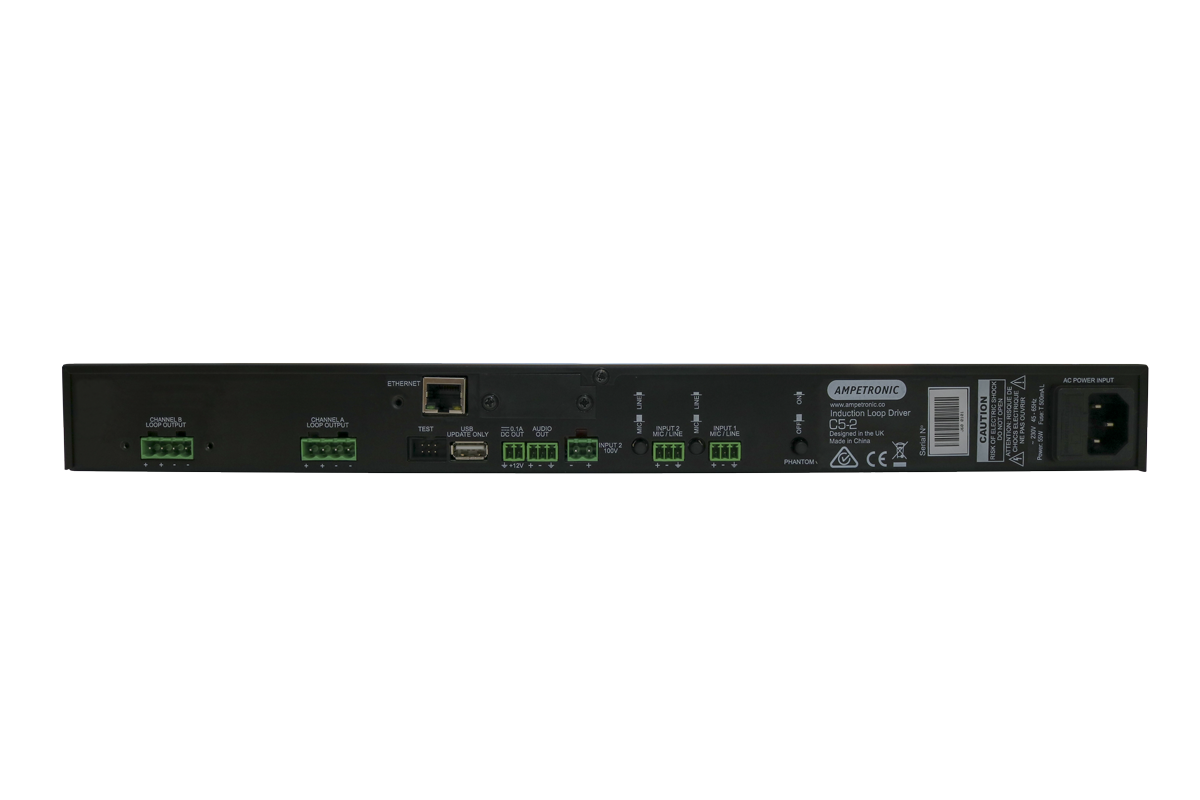

INPUTS

Power	35/55/95W 230V AC nominal, 45-65Hz [120V option available] Fuse values: C5-2 120V – T1AL \| 230V – T500mAL
Input 1 & 2	3 way 3.5mm euroblock screw terminal input (supplied) with a balanced microphone and line level operation. Switchable 250Hz low cut filter (network models only). Selectable via rear panel switch.
Microphone / Line	Microphone specification; 200 – 600Ω, sensitivity -67dBu. Selectable 24V phantom power on microphone only. Line sensitivity -42dBu
100V Line	2 way 5mm euroblock screw terminal (supplied) 100V sensitivity +7dBu

OUTPUTS

Loop Output Drive Voltage	20V_RMS (28Vpk) at maximum output current per channel
Loop Output/Drive Current	C5-X Drive Current: 5A_RMS (7Apk) up to 60 seconds continuous 1kHz sine wave, peak >7A per channel. Cont. pink noise 2.3A_RMS short term peaks >7A per channel.
Loop Output/Drive Current	C7-X 7A_RMS (10Apk) up to 60 seconds continuous 1kHz sine wave, peak >10A per channel Cont. pink noise 3.3A_RMS short term peaks >10A per channel.
Loop Connectors	4 way 5mm euroblock screw terminal (supplied) for each output, for star-quad configured feed cables
DC Output	2 way 3.5mm euroblock screw terminal Re-settable, fuse protected 12V 0.1A. Controllable to reflect amplifier status (network models only)
Line Output	3 way 3.5mm euroblock screw terminal (supplied) post AGC balanced output

THERMAL HEAT CHART

				Idle		1/6 peak Output Current (Speech)		1/3 peak Output Current (Pink noise)		Full Power
Driver	Channels	Current (A_RMS)	Load Resistance (Ohms)	AC In (W)	BTU	AC In (W)	BTU	AC In (W)	BTU	AC In (W)	BTU
C7-2	2	7.0	0.44	11	38	15	49	36	90	76	112
C7-2	2	7.0	1.0	11	38	19	46	44	76	169	242
C7-2	2	5.0	2.0	11	38	19	46	42	67	157	194
C7-1	1	7.0	0.4	8	27	10	30	15	35	36	49
C7-1	1	7.0	1.0	8	27	13	35	25	48	80	106
C7-1	1	5.0	2.0	8	27	12	31	24	44	80	102
C5-2	2	5.0	0.4	11	38	13	40	19	48	45	78
C5-2	2	5.0	1.0	11	38	16	45	29	61	91	140
C5-2	2	3.5	2.0	11	38	14	38	24	45	82	113
C5-1	1	5.0	0.5	8	27	9	28	11	28	32	67
C5-1	1	3.5	1.0	8	27	9	28	12	32	27	50

AUDIO SYSTEM

Frequency Response	80Hz to 6.5kHz
Distortion	THD+N <0.3% 1kHz sine at full current
Automatic Gain Control	The AGC is optimised for speech. Dynamic range >36dB
Metal Loss Correction	Corrects system frequency response issues due to metal structures in a building. Gain constant at 1kHz, adjustable gain slope from 0 to 4dB per octave in 0.25dB increments. Custom 2 slope MLC allows different slopes and transition frequency to be set via the menu (network models only). This does not compensate for signal loss from metal structures which can be significant.
Phase Shift	User selectable (web only) at 0° or 90° between outputs

ADDITIONAL FUNCTIONS

Status

Tri-colour LED:

Solid GREEN = normal operation
Flashing GREEN = sleep or standby mode
Flashing RED = error
Flashing AMBER = firmware updating

PHYSICAL

Size	Full width 1U 19″ rack mount. Width 430mm Depth 190mm Height 44mm
Mounting Options	Freestanding 1U 19″ rack mount (brackets fitted as standard)
Weight	C5-1: 2.5 kg C5-2: 2.8 kg C7-1: 2.8 kg C7-2: 3.1 kg
Environment	IP20 rated; 20 to 90% relative humidity; 0 to 35ºC
Cooling	Passive

These products are designed to form part of a system that can meet all of the requirements of the international loop performance standard IEC60118-4, and the relevant parts of IEC TR 63079. To fully meet requirements of these standards, correct design, installation, commissioning and maintenance are required.

All specification data has been compiled in accordance with IEC62489-1, the international performance reporting standard for audio frequency induction loop equipment. Specification data should only be compared with data compliant to this standard.

This product is CE and RCM marked to all relevant safety and EMC standards, and is MET Labs approved for sale in North America.
