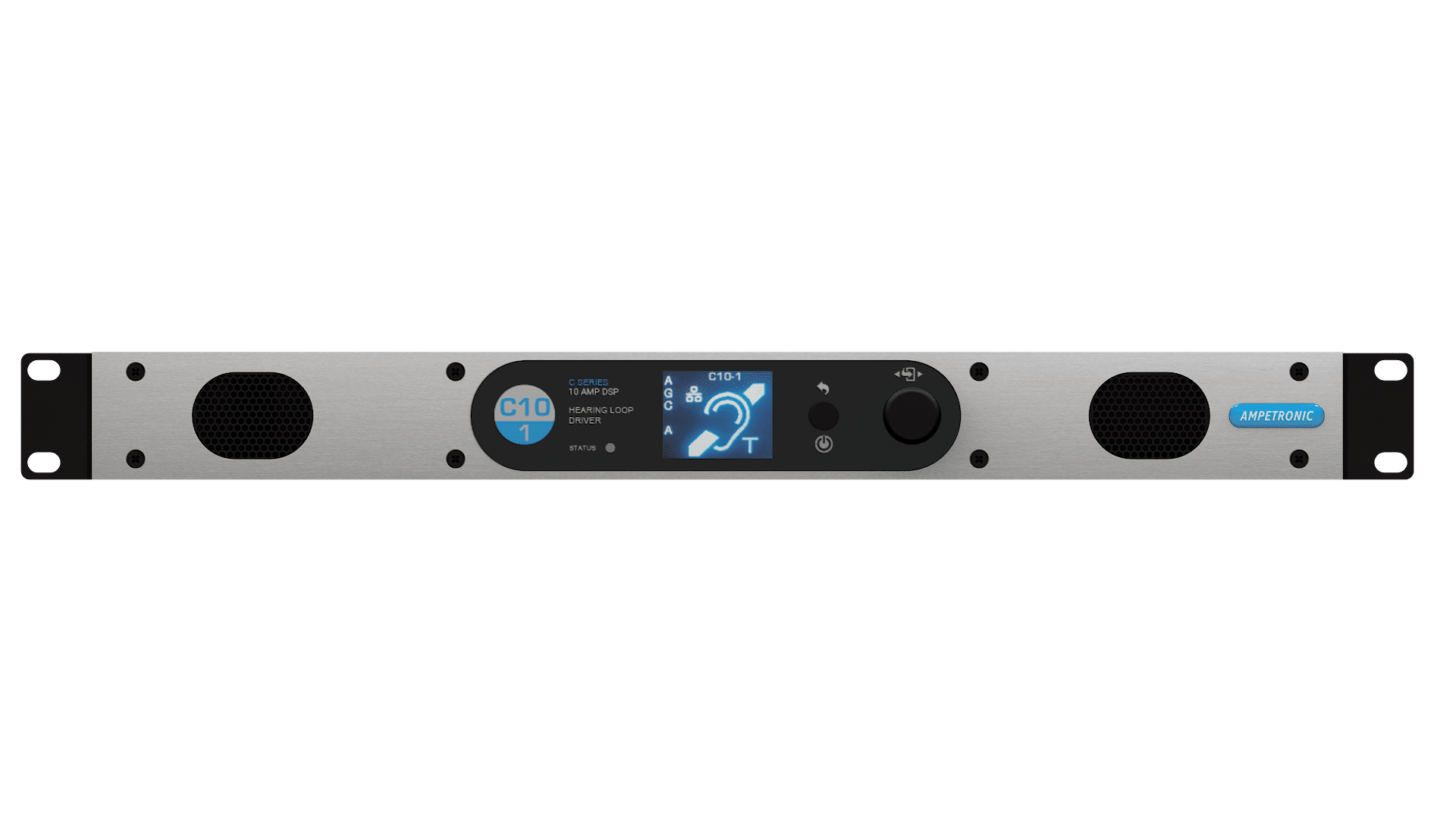

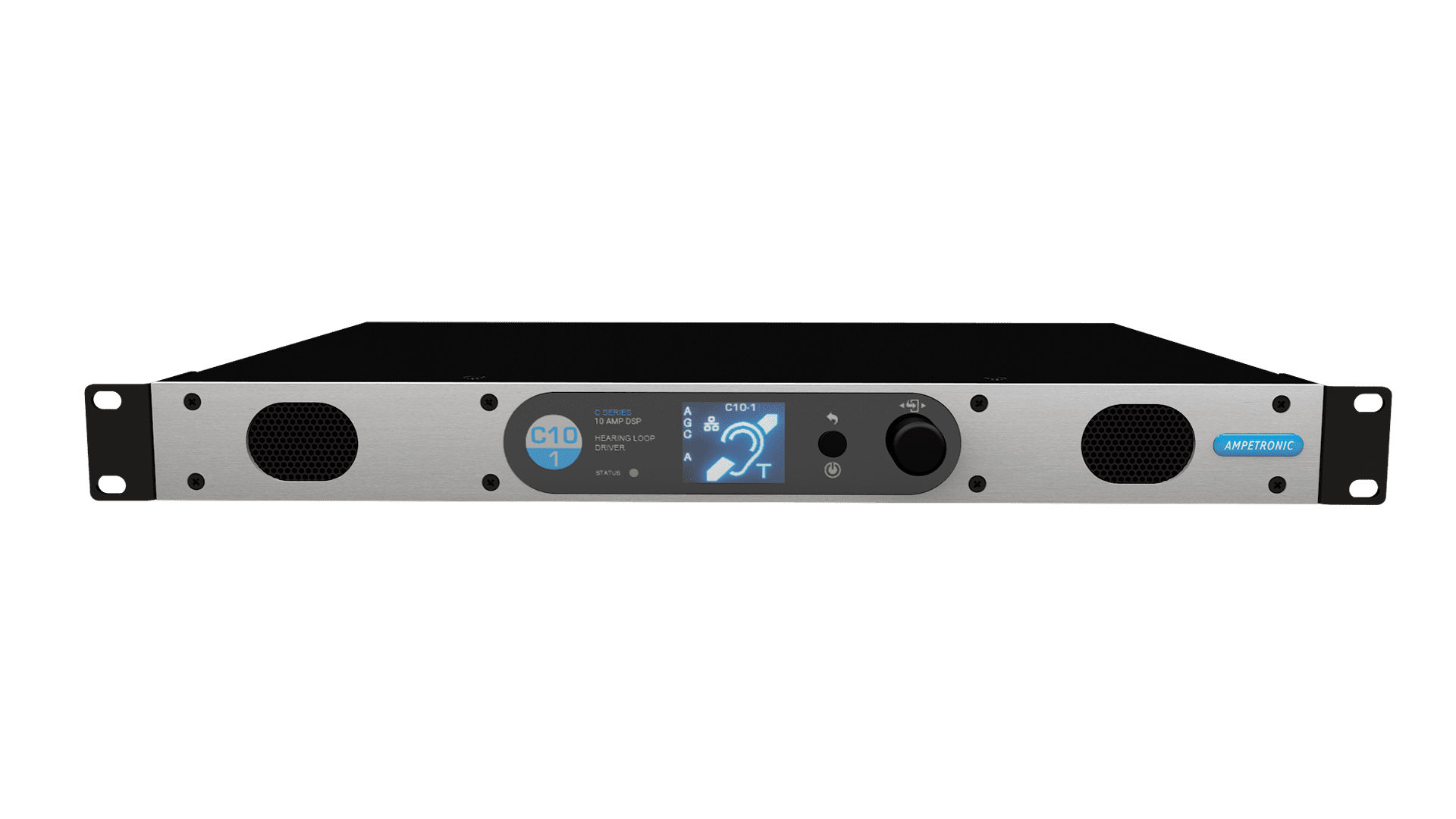

C10-1 Perimeter hearing loop driver

The C10-1 Series hearing loop drivers from Ampetronic mark a substantial development in assistive listening technology. C Series units feature digital signal processing and networking functionality, and enable fast, accurate setup and adjustment via a very simple and easy to use user interface.

Ampetronic has engineered the C Series to offer the high end performance, consistency and certainty of results usually associated with top of the range hearing loop drivers. Class ‘D’ drivers built into the C Series ensures low running and maintenance costs.

Network and Dante versions enable installers, technicians and facilities managers to remotely control the driver and monitor its condition status along with resistance and induction measurements. Fault condition alerts via email or Telnet provide reassurance that an operator will be informed of any issues with performance delivery.

The C10-1 features 10 AmpsRMS current loop output, plus ample voltage headroom, making it suitable for a wide range of applications. Installation can be performed with total confidence; unique, multi-stage filtering ensures compatibility with other systems and global EMC regulations. These products are designed to form part of a system that can meet all of the requirements of the international loop performance standard IEC60118-4, and the relevant parts of IEC TR 63079.

C10-1 Series hearing loop drivers applications include:

  • Lecture Theatres & Conference facilities
  • Stadia, Sports Halls, Cinemas & Theatres
  • Courts Rooms, Airports & Railway Stations

Product Code:




You can also select from:

Perimeter loop drivers
C5-1 – 5ARMS output, single channel, 20VRMS
C7-1 – 7ARMS output, single channel, 20VRMS
C10-1 – 10ARMS output, single channel, 33.9VRMS

MultiLoop drivers
C5-2 – 5ARMS output, two channels, 20VRMS
C7-2 – 7ARMS output, two channels, 20VRMS
C10-2 – 10ARMS output, two channels, 33.9VRMS
C14-2 – 14ARMS output, two channels, 48.1VRMS

  • Features
  • Specifications
  • Standards
  • Downloads
    • Simple digital interface for accurate adjustment
    • Network and stand-alone options
    • Built-in test tones
    • Compatible with Loopworks Measure LoopLink for direct and automated driver control
    • Clear indicators and system diagnostics
    • Compact 1U rack mount unit with internal power supply
    • Optimised for speech frequencies with unmatched intelligibility and capable of high quality musical reproduction
    • Industry standard Phoenix connectors
    • Data compliant with IEC 62489-1 Standard
    • 100V line input



    Input 1 & 23 way 3.5mm euroblock screw terminal input (supplied) with a balanced microphone and line level operation, selectable via rear panel switch. Switchable 250Hz low cut filter. Priority input option (network models only).
    Microphone / LineMicrophone specification; 200 – 600Ω, sensitivity -67dBu.
    Selectable 24V phantom power on microphone only
    Line sensitivity -42dBu.
    Max line level 17Bu. Max mic level -8dBu.
    100V Line
    (Input 2 only)
    2 way 5mm euroblock screw terminal (supplied)
    Sensitivity +7dBu
    (Optional C5/C7)
    RJ45 Ethernet, control and monitoring.
    Hosted web server, Telnet & SNMP.

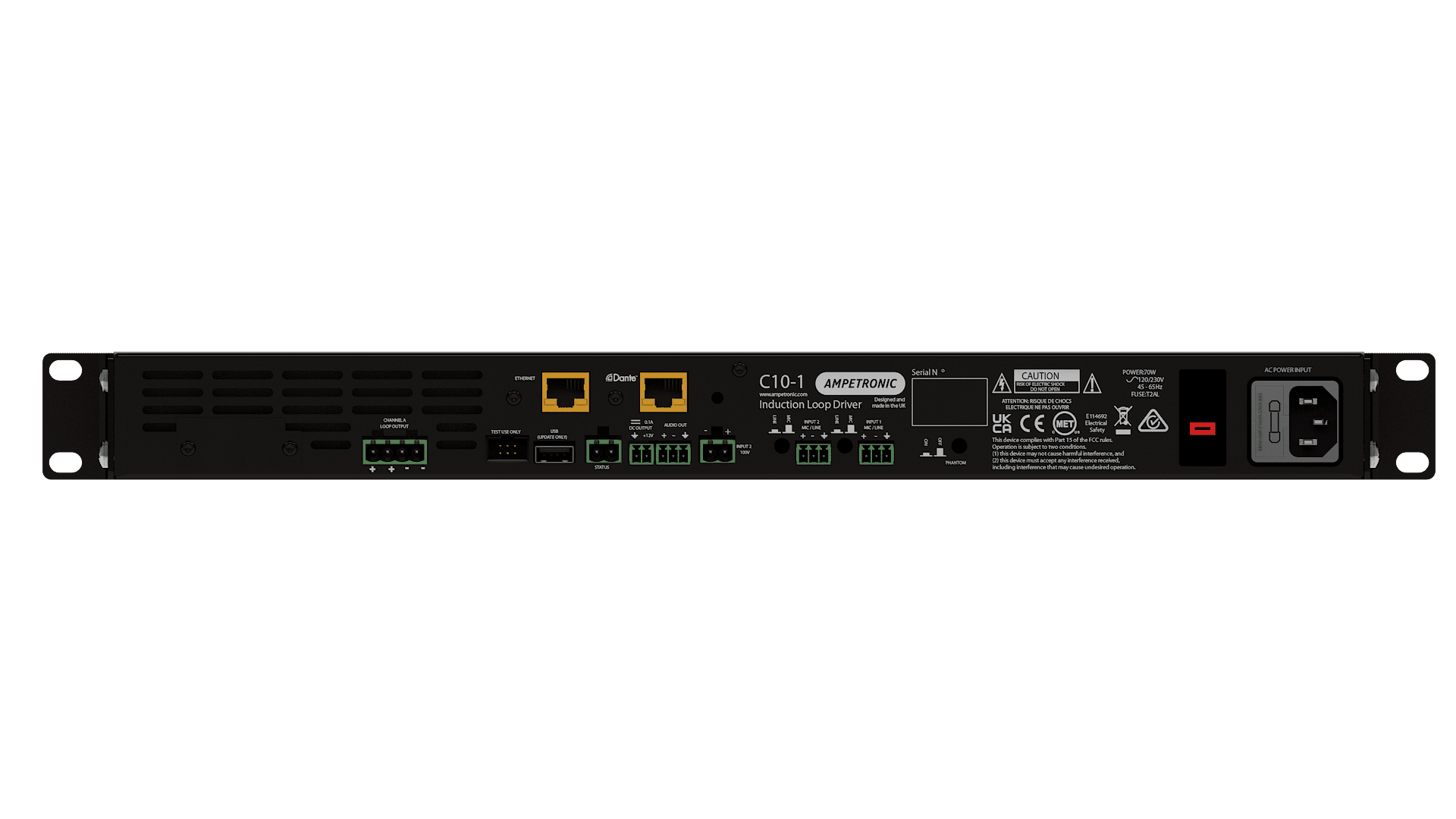

    Loop Connectors4 way 5mm euroblock screw terminal (supplied) for each output, for twisted pair or star-quad configured feed cables
    DC Output*2 way 3.5mm euroblock screw terminal (supplied).
    Re-settable, fuse protected 12V 0.1A.
    Controllable to reflect amplifier status (network models only)
    Status Relay
    (C10 and C14)
    2 way 3.5mm euroblock screw terminal (supplied).
    Normally closed isolated relay contacts, open in fault conditions. Rated load 0.5A at 125VAC, 2A at 30VDC.
    Line Output3 way 3.5mm euroblock screw terminal (supplied) post AGC balanced output
    USB* Firmware updates or power for wireless router (200mA max).

    *Note powering an external device via DC out or USB may reduce power headroom available for the loop. DC Output and USB power should not be used simultaneously.

    ModelCurrentVoltagePower ConsumptionWeight
    C5-15ARMS (7.1 Apk) 1kHz sine
    2.4ARMS pink
    20VRMS (28.3Vpk)35W2.5kg
    C7-17ARMS (9.9 Apk) 1kHz sine
    3.3ARMS pink
    C10-110ARMS (14.1 Apk) 1kHz sine
    4.7ARMS pink
    33.9VRMS (48Vpk)70W (mains voltage switchable)4.2kg
    C10-2120W (mains voltage switchable)5.2kg
    C14-214ARMS (19.8 Apk) 1kHz sine
    6.6ARMS pink
    48.1VRMS (68Vpk)180W (mains voltage switchable)6.7kg


    Idle1/6 peak Output Current (Speech)1/3 peak Output Current (Pink noise)Full Power
    Driver ModelNumber of channelsCurrent (ARMS)Load Resistance (Ohms)AC In (W)BTUAC In (W)BTUAC In (W)BTUAC In (W)BTU



    Frequency Response80Hz to 6.5kHz
    DistortionTHD+N <0.3% 1kHz sine at full current
    Automatic Gain ControlThe AGC is optimised for speech. Dynamic range >36dB
    Metal Loss CorrectionCorrects system frequency response issues due to metal structures in a building. Gain constant at 1kHz, adjustable gain slope from 0 to 4dB per octave in 0.25dB increments.
    Custom dual slope MLC allows different slopes and knee frequency to be set via the menu (network models only). This does not compensate for signal loss from metal structures which can be significant.
    Phase ShiftUser selectable (network models only) at 0° or 90° between outputs


    StatusTri-colour LED:
    Solid Green = normal operation
    Flashing Green = sleep mode
    Flashing Amber = standby
    Flashing Red = error
    Fast Flashing Amber = firmware update

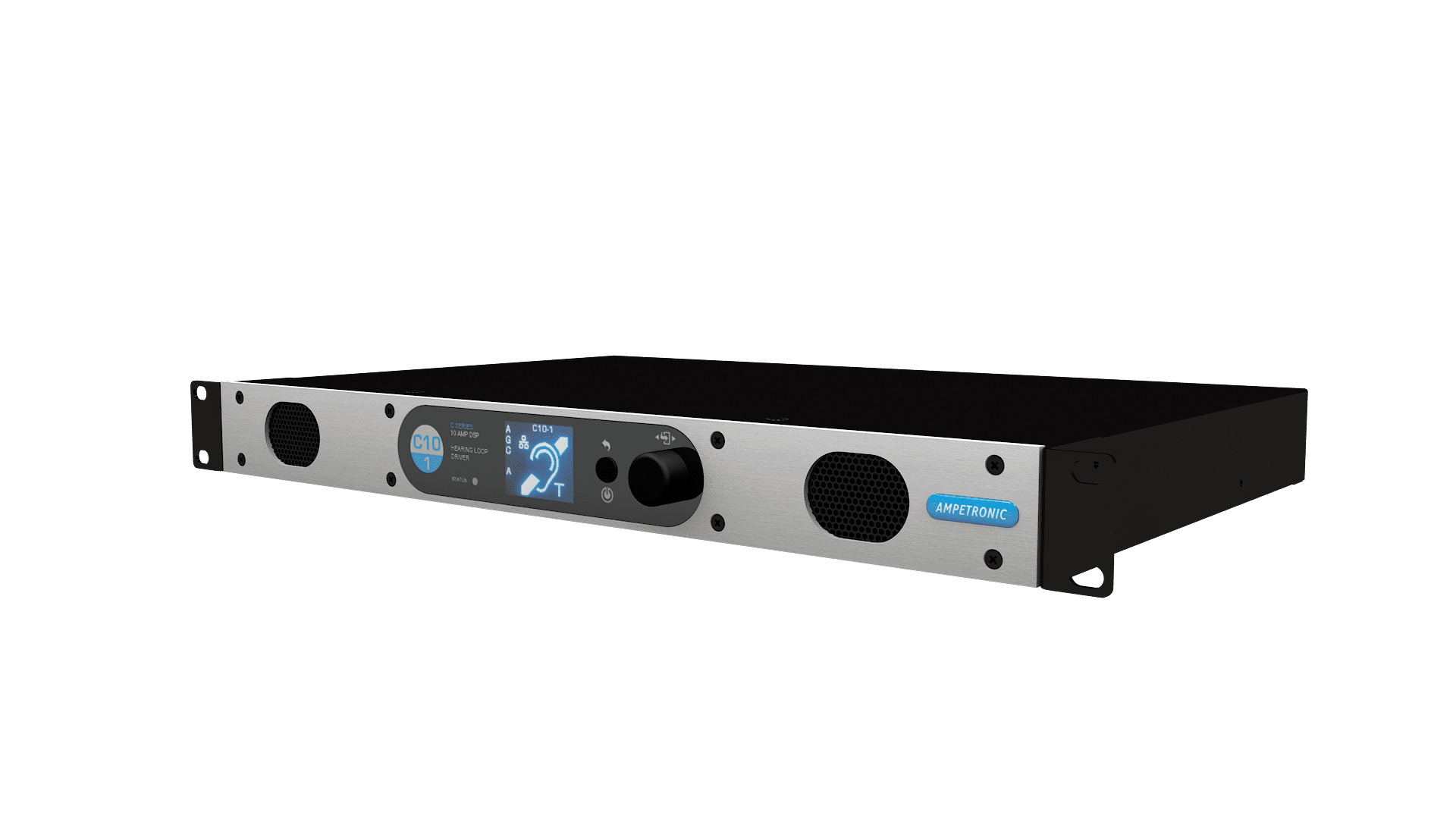

    SizeFull width 1U 19″ rack mount.
    Width 430mm Depth 190mm Height 44mm
    Depth inc. knob 190mm (C5/C7) 305mm (C10/C14)
    Mounting OptionsFreestanding
    Options 1U 19″ rack mount (brackets fitted as standard)
    Wall mounted, brackets available separately
    EnvironmentIP20 rated; 20 to 90% relative humidity; 0 to 35ºC
    CoolingC5/C7 Passive.
    C10/14 variable speed fan, front inlet rear exhaust.
  • These products are designed to form part of a system that can meet all of the requirements of the international loop performance standard IEC60118-4, and the relevant parts of IEC TR 63079. To fully meet requirements of these standards, correct design, installation, commissioning and maintenance are required.

    All specification data has been compiled in accordance with IEC62489-1, the international performance reporting standard for audio frequency induction loop equipment. Specification data should only be compared with data compliant to this standard.

    This product is CE and RCM marked to all relevant safety and EMC standards, and is MET Labs approved for sale in North America.
