TalkPerfect TP-DX-N Duplex Intercom

Speech Transfer System - Amplifier + Bracket

Part code: TP-DX-N

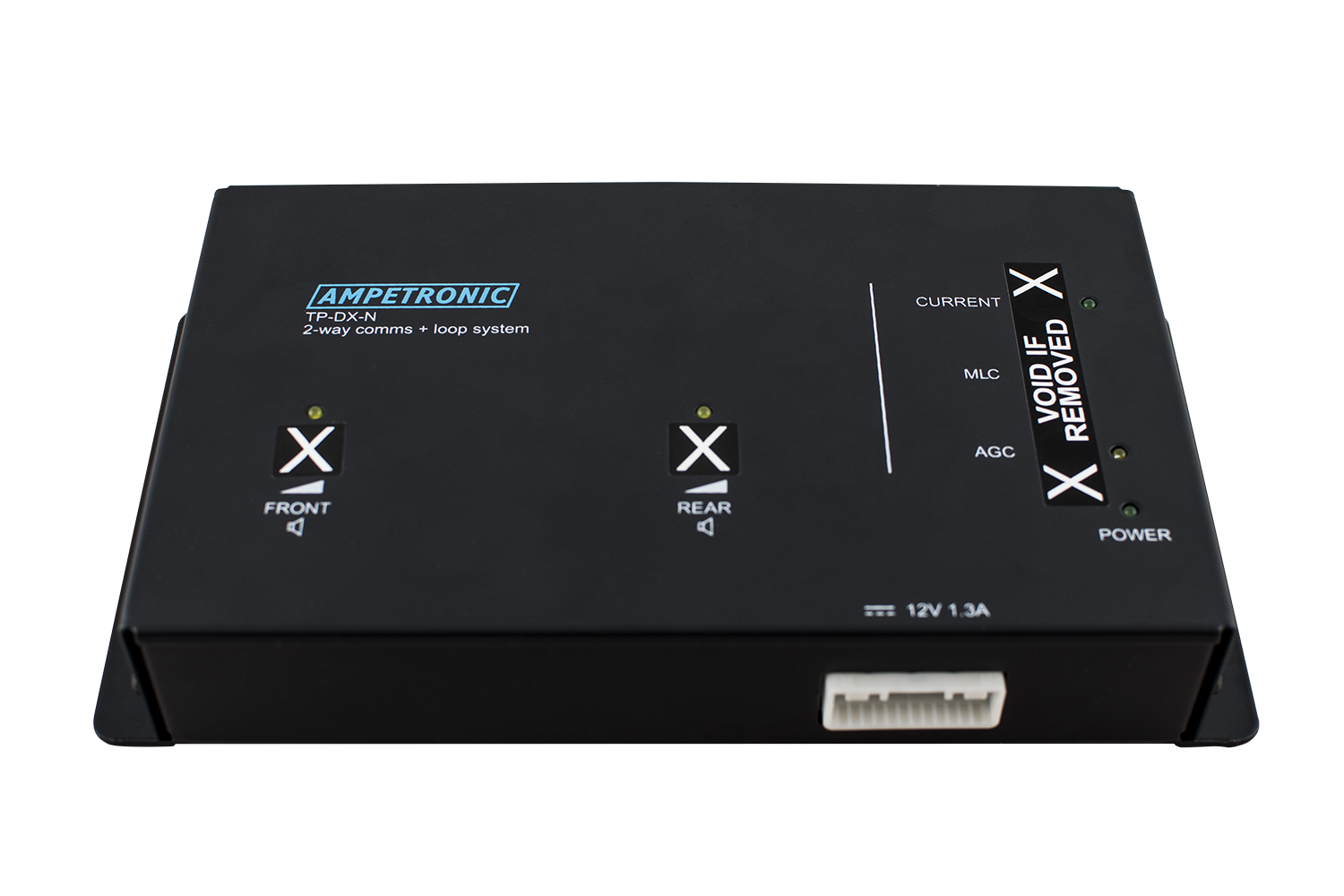

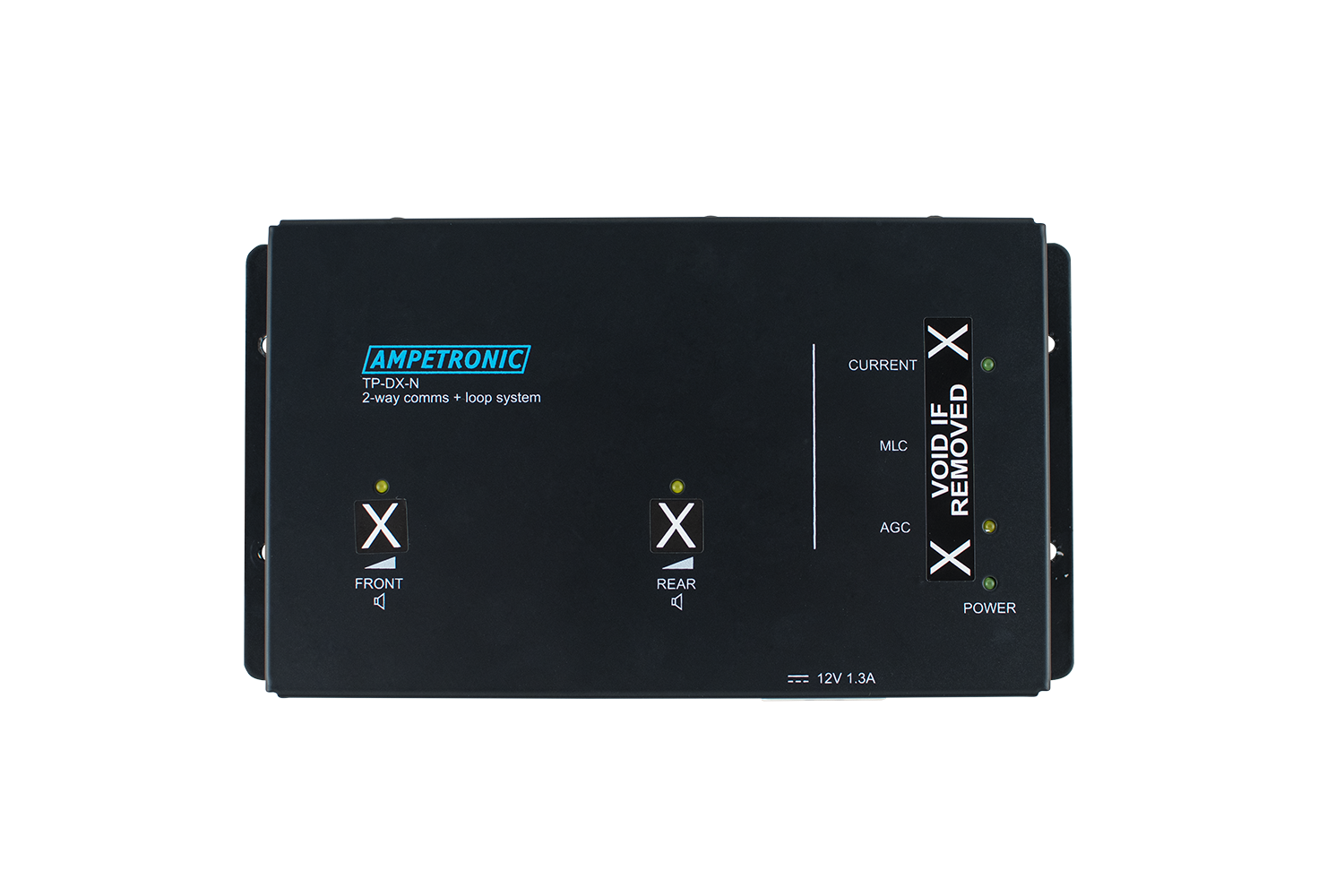

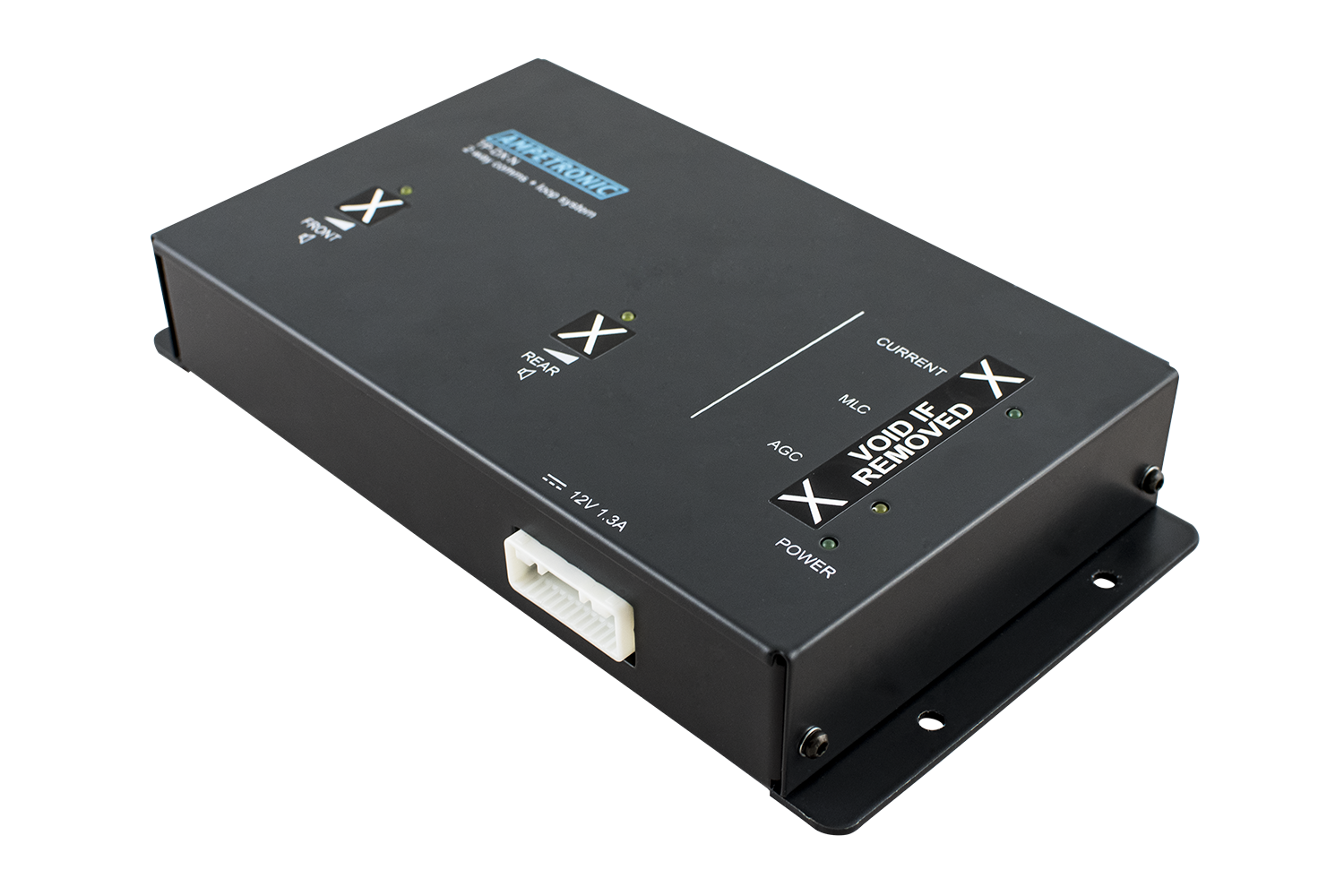

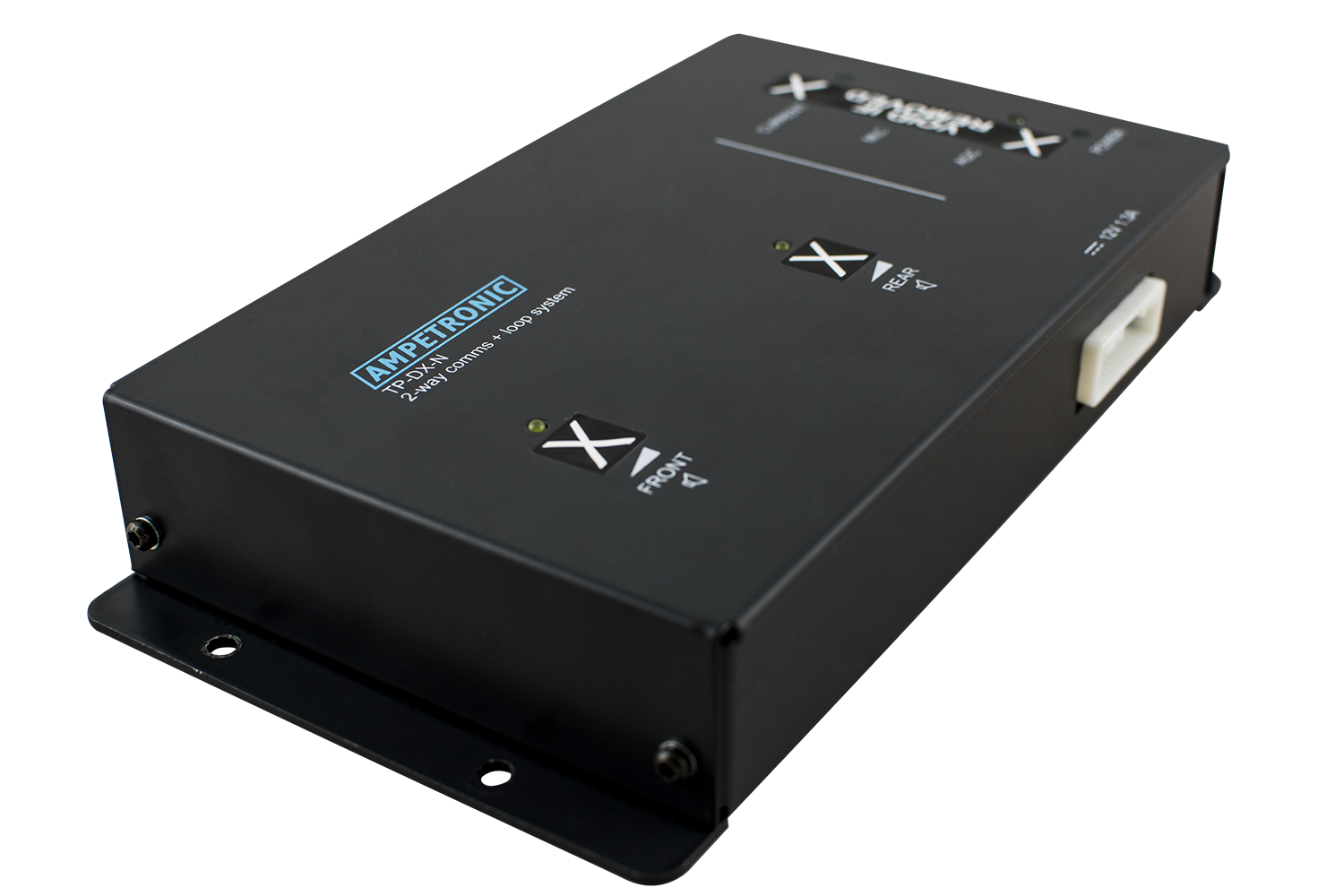

The Ampetronic TalkPerfect TP-DX-N duplex intercom system is the control unit for a two-way voice enhancement system, with an integral Hearing Loop driver. Based on proven, reliable and patented technology, the full duplex system amplifies speech for both customer and staff whist minimising background noise and actively reducing acoustic feedback.



Specifications



Downloads



Book a demo

Design / Specify

hidden tab

Features

For the installer:

Modular and compact – flexible to install and unobtrusive

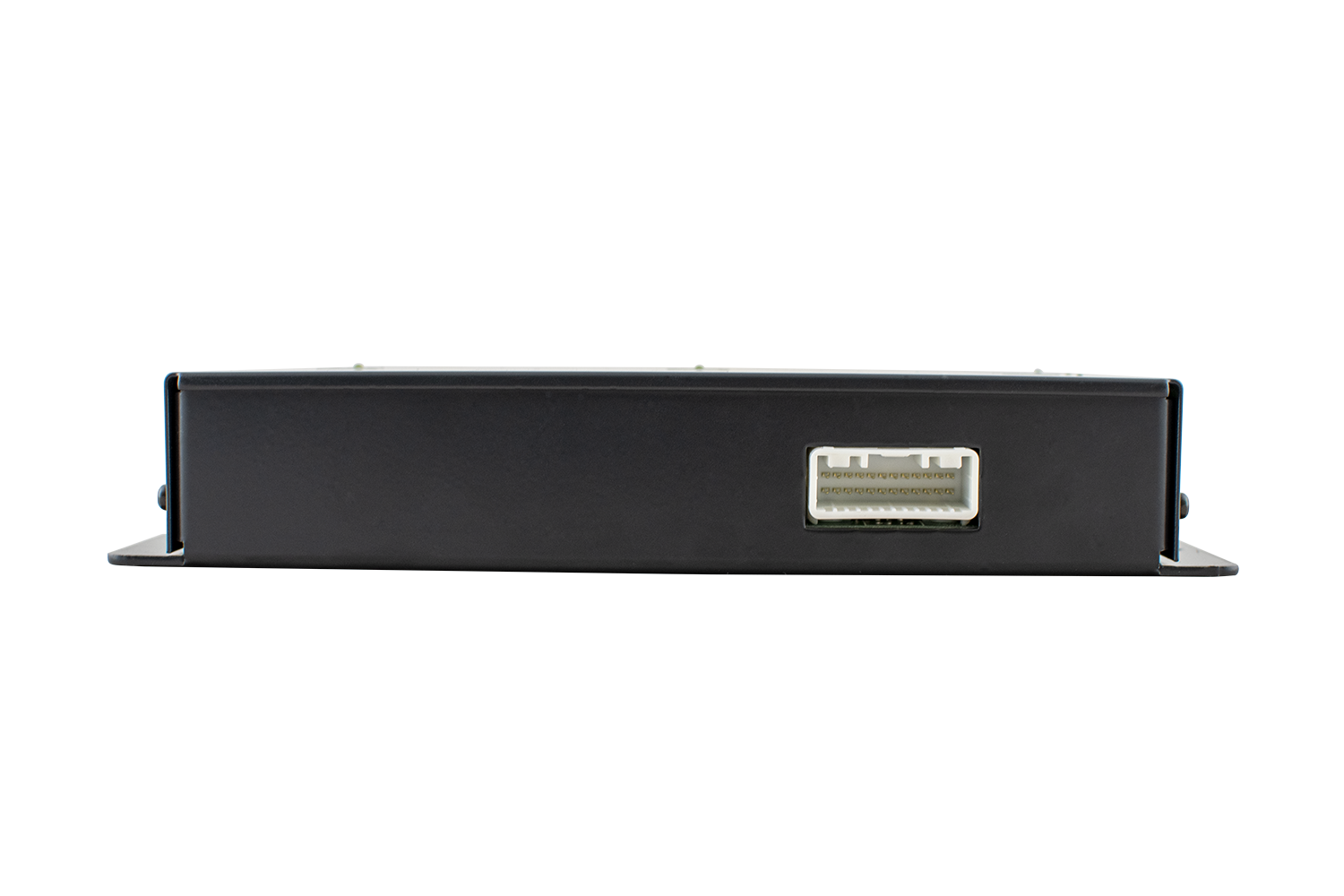

All connections are made on the rear panel of the control unit – simplifies and speeds installation
Stainless Steel or RAL colour finish speaker PODs – complimentary to any decor or required aesthetic

For the user:

Full duplex communication – allows natural conversation
Patented technology – minimises acoustic feedback
Proven reliability – low maintenance costs
Noise cancelling microphones – high rejection to background noise
Integrated hearing loop system – enabling connection with T-coil enabled devices e.g. hearing aids, cochlear implants and hand held receivers
Independent volume controls for both channels – comfortable listening for staff and client
Combined speaker, microphone & control model – easy to position and saves counter space *when installed with Combi Unit
Red LED ring signal – attractive indication of system operation *when installed with Combi Unit

Standards

Meets relevant CE, EMC and safety standards

Maximum cable length for all connections is 3m

Downloads

UP37002-11-Talkperfect-options

UP28004-2 Talkperfect DX-N Kits Installation Guide

UP38001-1 TalkPerfect TP-DX-N Datasheet

UP37008-1 TalkPerfect Accessories Datasheet

UP18003-1-Talkperfect-DX-N-Kits-Unit-handbook

Specifications (PDF)

Click here to open datasheet in a new tab



Specifications



Downloads



Book a demo

Design / Specify

TalkPerfect TP-DX-N Duplex Intercom

The TalkPerfect TP-DX-N system not only comprises a full duplex intercom system, reinforcing communications from staff to customer and customer to staff with high quality amplified sound, but is also simple to install, does not require an external computer of software to set up, and once installed it is designed to function without further intervention.

The TalkPerfect TP-DX-N contains signal processing for system stability and clarity of speech and is shipped pre-set, directly for use with minimum set up adjustment.

The Hearing Loop (or Audio Induction Loop System [AFILS]) driver will allow hearing assistance to be provided to customers as part of the installation when connected to suitable installed loop wiring.

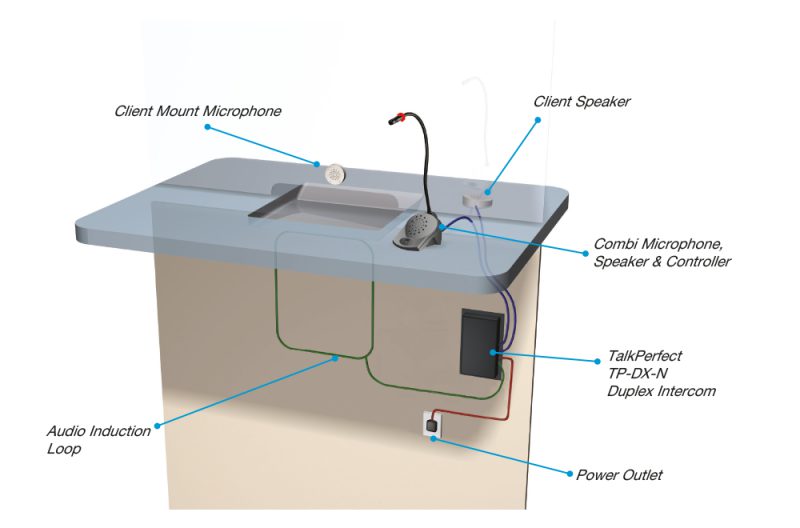

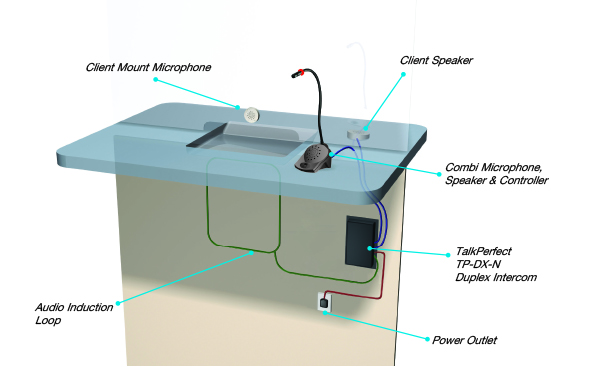

TalkPerfect TP-DX-N duplex intercom system - KIT 1 (Standard) Diagram

Client Side:
1 x POD Speaker
1 x Glass Mount Microphone

Staff Side:
1x Combi Microphone/Speaker Unit

TalkPerfect TP-DX-N duplex intercom system

TalkPerfect applications include

Security reception desks
Customer returns points
Banks & Post Offices
High cash counters
Prison visitor desks
Benefits agencies
Police stations
Petrol forecourts

The TalkPerfect can be supplied in kits to suit any environment and application:

for alternative see TalkPerfect duplex speech transfer system

For the installer:

Modular and compact – flexible to install and unobtrusive
All connections are made on the rear panel of the control unit – simplifies and speeds installation
Stainless Steel or RAL colour finish speaker PODs – complimentary to any decor or required aesthetic

For the user:

Full duplex communication – allows natural conversation
Patented technology – minimises acoustic feedback
Proven reliability – low maintenance costs
Noise cancelling microphones – high rejection to background noise
Integrated hearing loop system – enabling connection with T-coil enabled devices e.g. hearing aids, cochlear implants and hand held receivers
Independent volume controls for both channels – comfortable listening for staff and client
Combined speaker, microphone & control model – easy to position and saves counter space *when installed with Combi Unit
Red LED ring signal – attractive indication of system operation *when installed with Combi Unit

Mic inputs	Unbalanced electret microphone: Source impedance <1kΩ Gain: >60dB (control at max)
	Sensitivity: -50dBu (2.4mVRMS) @ 1kHz with gain control at max level
	Input noise level: -124dBu
	Input impedance: 1.1kΩ
	DC bias voltage: 12V though 11kΩ

Speaker O/Ps	4W per channel, <0.5% THD @ 1kHz with +9dBu (1.2W into 4Ω), 20Hz – 10kHz
	Minimum load: 4Ω, Frequency response: 100Hz – 6KHz +/-3dB

Loop O/P	Current: 2.4A RMS, Max Voltage: +14dBu (3.9VRMS) THD <0.5% @ 1kHz with 2.2ARMS into 0.3Ω, 70uH
	Loop resistance: Min 0.3Ω
	Frequency response: 80Hz – 5.0kHz +/-1.5dB re: 1kHz
	AGC: 40dB dynamic range, high ratio limiting type
	MLC: Flat to >3dB per octave boost (fully anti-clockwise – flat response)

Control Status	Mute turns all outputs off
	LED output indicates if the system is active – connect to ground

Physical

Dimensions & Weight	width 220mm, depth 116mm, height 40mm, 630g
Temperature Range	-30 to +75ºC, 20 to 95% relative humidity
Environmental	IP30

DC Power	12VDC, Range: 9VDC to 16VDC
	Power Quiescent: 3.0W (250mA)
	Power Maximum: 24W (2.0A)
	Protection: 2.0A resettable device

Accessories

Microphones	POD Microphone, Combi Unit, Glass Mount Microphone
Speakers	POD Speaker, Combi Unit

Meets relevant CE, EMC and safety standards

Maximum cable length for all connections is 3m

UP37002-11-Talkperfect-options

UP28004-2 Talkperfect DX-N Kits Installation Guide

UP38001-1 TalkPerfect TP-DX-N Datasheet

UP37008-1 TalkPerfect Accessories Datasheet

UP18003-1-Talkperfect-DX-N-Kits-Unit-handbook

Kit code	Description
TP-N-KIT1	Talkperfect Kit1 1 Glass Mount Mic, 1 combi + 1 Pod speaker, audio induction loop
TP-N-KIT3	Talkperfect Kit3 1 Pod Mic, 1 Pod speaker + 1 combi, audio induction loop
TP-N-KIT4	Talkperfect Kit4 2 Pod Mics + 2 Pod speakers, audio induction loop
