ILD1000G Professional rack mountable loop driver

ILD1000G Induction Loop Driver
Part code: ILD1000G

The ILD1000G Professional rack mountable loop driver is now obsolete – please see C10-1 Perimeter hearing loop driver

hidden tab
Features
  • Very high output for the largest applications
  • High efficiency class-G amplifier with low heat dissipation
  • Very compact 1U rack mount, wall mount or free standing
  • Versatile input selection
  • 1 XLR balanced microphone
  • 1 XLR balanced mic / line switchable input
  • 1 6.3mm balanced jack line input
  • Low lifetime cost
  • Excellent reliability
  • 5 year warranty
  • Unparalleled sound quality
  • Metal loss corrector
  • Rack mount brackets included
  • Free technical support
Specifications

Perimeter Loops – Area Coverage (maximum)

Capable of driving the largest practical perimeter loops – theoretical area coverage >1000m2 for square areas, >1300m2 for rectangular areas, though the practical limit may be set by the installation environment. Ampetronic design tools and support are available to check the expected performance for your application.

Combined systems for very large areas

Multiple ILD1000G amplifiers can be combined using Ampetronic ILC Parallel DriveTM technology to drive systems in excess of 4000m2
Contact Ampetronic support for details.

Maximum Cable Length

The ILD1000G is designed for SINGLE TURN loops for optimum audio quality.
For loops with DC resistance from 0.5 to 3.0Ω , impedance to 3.5Ω
Maximum cable length is dependent on cable type and on the application:

Cable type Maximum Cable Length (m)
Normal Use* Transient Speech*
1.0mm2 copper 132 153
2.5mm2 copper 181 230
4.0mm2 copper 188 246
1.8mm2 flat copper tape 233 271



* Short term speech (e.g. service counter, airport PA system) can cope with limited clipping at high frequencies – Ampetronic recommends delivery of full current up to 1.2kHz for these applications.
Longer term usage or signals with music or high quality audio must deliver full current to at least 1.6kHz to prevent fatigue and give acceptable intelligibility. Many commercially available systems do not deliver sufficient voltage to reproduce critical high frequencies – ask us for more details.

INPUTS

Power 120W 230V AC nominal, 45-65Hz [120V option available]

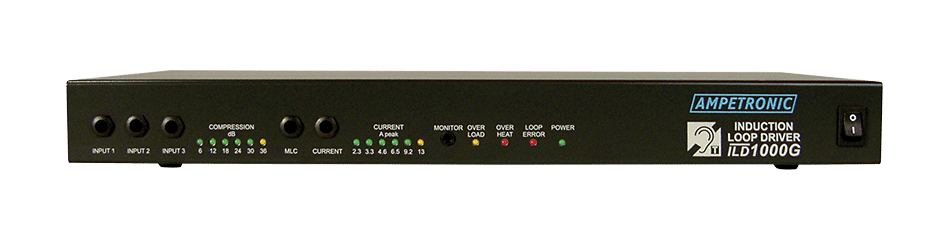

Power switch and LED indicator on front panel
Input 1 XLR balanced microphone input for 200-600Ω microphones;
15dB user selectable gain boost; + 15V DC phantom power (selectable); sensitivity – 55dBu; front panel recessed gain control
Input 2 Selectable microphone / line XLR balanced input, switched between microphone and line on the rear panel. Microphone specifications as for input 1
Line specifications: 15dB user selectable gain boost;
sensitivity -30dBu; overload protected; phantom power disabled in line mode; front panel recessed gain control
Input 3 Line input 6.3mm jack socket balanced line input; sensitivity -30dBu;
overload protected, front panel recessed gain control
Link I/O 6.3mm jack socket insert point for connection of SP5 phase shifter
0dBu signal can be used for recording

OUTPUTS

Drive voltage 31.8Vrms 45V peak at maximum output current
Drive current • 9.2Arms (13Apk) continuous 1kHz sine wave peak >13A
• Short term peaks >19A
• Front panel recessed control
• Drive current indicated on 6-LED display in 3dB increments

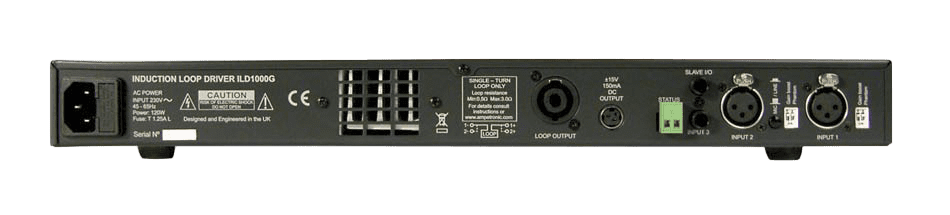

Loop connector Neutrik NL4 Speakon (supplied)
Loop monitor Provides access to actual loop current via a 3.5mm stereo
headphone connector on front panel
Status A pair of isolated relay contacts to indicate system status;
fault = open circuit: system O.K. = short circuit



AUDIO SYSTEM

Frequency response 80Hz to 6.5kHz
Distortion THD+N
Automatic gain control The AGC is optimised for speech. Dynamic range >36dB
Metal loss correction Corrects system frequency response due to metal structures in a building.
Gain constant at 1kHz, adjustable gain slope from 0 to 3dB per octave. This does not compensate for signal loss from metal structures which can be significant.

ADDITIONAL FUNCTIONS

Fault monitoring Three LED fault indicators on the front panel;
• Overload – delivering over the rated current or voltage
• Overheat – unit is too hot (mutes output signal)
• Loop error – short circuit / open circuit error
Status Contact A pair of relay contacts are provided for remote fault monitoring
Ancillary To supply Ampetronic ancillary units ±15V DC 0.15A power outlet on rear panel
Cooling Forced ventilation. Air intake on left panel, air ejection at rear



PHYSICAL

Dimensions Full width 1U 19″ rack mount
Width 430mm Depth 220mm Height 44mm
Mounting options • Freestanding
• 1U 19″ rack mount (brackets included)
• Wall mounting (requires additional brackets)
Weight 3.75kg
Environment IP20 rated; 20 to 90% relative humidity; 0 to 35ºC
Standards

Standards compliance

The ILD1000G is CE marked to all relevant safety and EMC standards.
All Ampetronic amplifiers can be used to create a system that meets the requirements of IEC118-4 and the relevant recommendation of BS7594, however the design and installation of the system is equally important to meet these Induction Loop Standards.
Some Ampetronic products are CSA registered for sale in the USA and Canada – contact Ampetronic for details.

Specifications (PDF)

Click here to open datasheet in a new tab

ILD1000G Professional rack mountable loop driver

The ILD1000G sets the standard for high performance professional perimeter induction loop systems. Utilising a new amplification technology, the ILD1000G provides the highest power output available in a single channel amplifier, while halving power consumption and heat dissipation.

It features ample power to drive the largest perimeter loops to over 1300m2, and high voltage headroom to ensure high quality audio output even in the longest cable runs. All of this power and performance is packaged in an elegant and space efficient 19”1U case.

The ILD1000G is also designed for versatility, with 3 configurable inputs to cope with any scenario, usable freestanding, wall mounted or rack mounted with the included brackets. The ILD1000G is built to our exacting standards and is backed by our 5 year warranty.

Applications include

  • Conference facilities
  • Large places of worship
  • Theatres
  • Sports halls
  • Lecture halls
  • Cinemas

Equipment supplied as standard with the ILD1000G

  • Handbook and installation instructions
  • 197 x 252mm loop system present sign (deaf logo)
  • Region specific mains cable
  • Loop connector
  • Rack mount brackets
  • Status Connector

Comparing the Ampetronic C-series vs ILD Range of Amplifiers

The Ampetronic C-series hearing loop drivers mark a substantial development in assistive listening technology. Each of the new drivers in the range offers key advantages over the previous ILD series:

• Class ‘D’ drivers in the C Series ensure minimal energy loss to heat, which in turn reduces running costs, extends product life, significantly reduces carbon footprint, and protects your investment.
• For example, over a year when using a C7-2 you could potentially use one fifth of the power required by an MLD7.
• The combination of a DSP and Class ‘D’ output stage has allowed us to achieve a frequency range beyond that mandated in the IEC60118-4 standard. This means that the end user can expect
better reproduction of high-frequency content when compared to that of an analogue hearing loop driver.
• “Standby” mode allows for reduced power consumption when the system is not in use, with advanced audio detection allowing the amplifier to jump back into action delivering signal when needed.
• Simple digital interface for accurate setup and adjustment, with advanced metal loss control for flat response, ensuring IEC60118-4 standard compliance across the full area.
• Network connectivity for remote reporting, commissioning, and adjustment.
• DANTE enabled versions available.

Each amplifier in the ILD range has an equivalent C-series driver, here are some quick comparisons:

ILD Range C-Series Equivalent
ILD300 C5-1
ILD252 C7-1
ILD500
ILD9 C10-1
ILD1000G

To find out more about the new C-series range, get in touch with us at the contact details below, or your local Ampetronic distributor!

Product code:

The ILD1000G Professional rack mountable loop driver is now obsolete - please see C10-1 Perimeter hearing loop driver

  • Very high output for the largest applications
  • High efficiency class-G amplifier with low heat dissipation
  • Very compact 1U rack mount, wall mount or free standing
  • Versatile input selection
  • 1 XLR balanced microphone
  • 1 XLR balanced mic / line switchable input
  • 1 6.3mm balanced jack line input
  • Low lifetime cost
  • Excellent reliability
  • 5 year warranty
  • Unparalleled sound quality
  • Metal loss corrector
  • Rack mount brackets included
  • Free technical support

ILD1000G optional accessories

Ampetronic can supply an extensive range of additional accessories for installation – discuss your requirements with our sales team and we will provide materials and equipment to suit your application.



Input adaptors A range of input adaptors and interface cables to accept most audio source inputs, see table below
Installation Accessories • 18mm x 0.25mm copper tape
• PVC extrusion to protect copper tape
• Installation / warning tape to fix cable or tape to a floor
Wall mount brackets WMF1-U

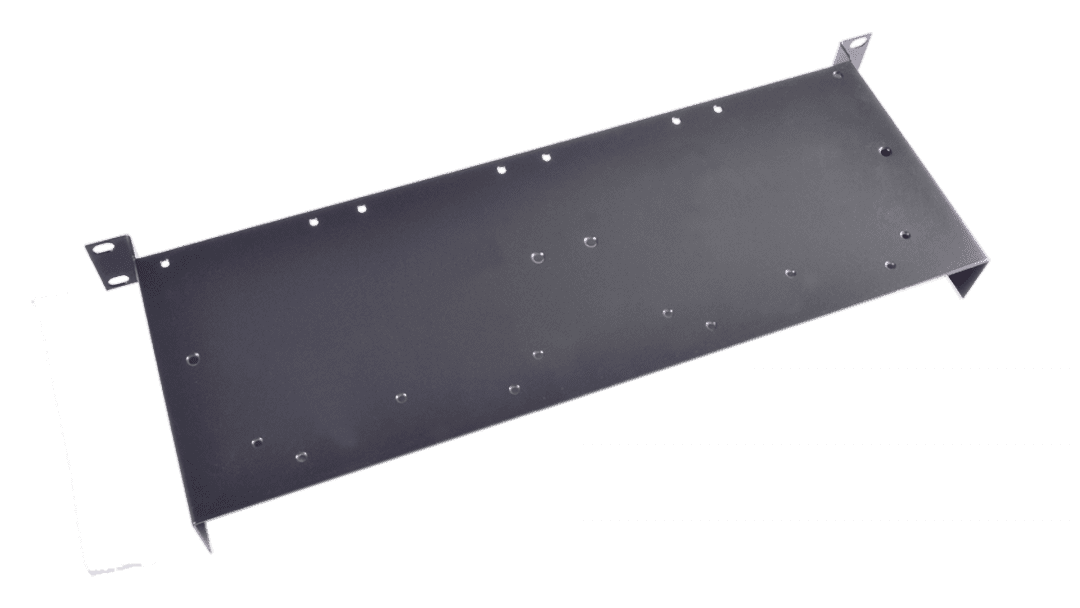

Rack mount brackets RM-1U
Phase shifter SP5 for an array system requires a design which can be provided by Ampetronic

Input adaptors and preamplifiers

By using the appropriate input adaptor or preamplifier the ILD1000G will accept multiple additional inputs or audio inputs from other sources:

Input type

Adaptor

Additional microphone MP221 preamps can drive up to 2 mics + 2 line inputs
100V line input
Low impedance speaker line
Line Level
ATT-UJ & ATT-UX transformer isolated attenuators
Unbalanced microphones MAT1 adaptor



Perimeter Loops – Area Coverage (maximum)

Capable of driving the largest practical perimeter loops – theoretical area coverage >1000m2 for square areas, >1300m2 for rectangular areas, though the practical limit may be set by the installation environment. Ampetronic design tools and support are available to check the expected performance for your application.

Combined systems for very large areas

Multiple ILD1000G amplifiers can be combined using Ampetronic ILC Parallel DriveTM technology to drive systems in excess of 4000m2
Contact Ampetronic support for details.

Maximum Cable Length

The ILD1000G is designed for SINGLE TURN loops for optimum audio quality.
For loops with DC resistance from 0.5 to 3.0Ω , impedance to 3.5Ω
Maximum cable length is dependent on cable type and on the application:

Cable type Maximum Cable Length (m)
Normal Use* Transient Speech*
1.0mm2 copper 132 153
2.5mm2 copper 181 230
4.0mm2 copper 188 246
1.8mm2 flat copper tape 233 271



* Short term speech (e.g. service counter, airport PA system) can cope with limited clipping at high frequencies – Ampetronic recommends delivery of full current up to 1.2kHz for these applications.
Longer term usage or signals with music or high quality audio must deliver full current to at least 1.6kHz to prevent fatigue and give acceptable intelligibility. Many commercially available systems do not deliver sufficient voltage to reproduce critical high frequencies – ask us for more details.

INPUTS

Power 120W 230V AC nominal, 45-65Hz [120V option available]
Power switch and LED indicator on front panel
Input 1 XLR balanced microphone input for 200-600Ω microphones;
15dB user selectable gain boost; + 15V DC phantom power (selectable); sensitivity – 55dBu; front panel recessed gain control
Input 2 Selectable microphone / line XLR balanced input, switched between microphone and line on the rear panel. Microphone specifications as for input 1
Line specifications: 15dB user selectable gain boost;
sensitivity -30dBu; overload protected; phantom power disabled in line mode; front panel recessed gain control
Input 3 Line input 6.3mm jack socket balanced line input; sensitivity -30dBu;
overload protected, front panel recessed gain control
Link I/O 6.3mm jack socket insert point for connection of SP5 phase shifter
0dBu signal can be used for recording

OUTPUTS

Drive voltage 31.8Vrms 45V peak at maximum output current
Drive current • 9.2Arms (13Apk) continuous 1kHz sine wave peak >13A
• Short term peaks >19A
• Front panel recessed control
• Drive current indicated on 6-LED display in 3dB increments
Loop connector Neutrik NL4 Speakon (supplied)
Loop monitor Provides access to actual loop current via a 3.5mm stereo
headphone connector on front panel
Status A pair of isolated relay contacts to indicate system status;
fault = open circuit: system O.K. = short circuit



AUDIO SYSTEM

Frequency response 80Hz to 6.5kHz
Distortion THD+N
Automatic gain control The AGC is optimised for speech. Dynamic range >36dB
Metal loss correction Corrects system frequency response due to metal structures in a building.
Gain constant at 1kHz, adjustable gain slope from 0 to 3dB per octave. This does not compensate for signal loss from metal structures which can be significant.

ADDITIONAL FUNCTIONS

Fault monitoring Three LED fault indicators on the front panel;
• Overload – delivering over the rated current or voltage
• Overheat – unit is too hot (mutes output signal)
• Loop error – short circuit / open circuit error
Status Contact A pair of relay contacts are provided for remote fault monitoring
Ancillary To supply Ampetronic ancillary units ±15V DC 0.15A power outlet on rear panel
Cooling Forced ventilation. Air intake on left panel, air ejection at rear



PHYSICAL

Dimensions Full width 1U 19″ rack mount
Width 430mm Depth 220mm Height 44mm
Mounting options • Freestanding
• 1U 19″ rack mount (brackets included)
• Wall mounting (requires additional brackets)
Weight 3.75kg
Environment IP20 rated; 20 to 90% relative humidity; 0 to 35ºC

Standards compliance

The ILD1000G is CE marked to all relevant safety and EMC standards.
All Ampetronic amplifiers can be used to create a system that meets the requirements of IEC118-4 and the relevant recommendation of BS7594, however the design and installation of the system is equally important to meet these Induction Loop Standards.
Some Ampetronic products are CSA registered for sale in the USA and Canada – contact Ampetronic for details.

hidden tab
Features
  • Very high output for the largest applications
  • High efficiency class-G amplifier with low heat dissipation
  • Very compact 1U rack mount, wall mount or free standing
  • Versatile input selection
  • 1 XLR balanced microphone
  • 1 XLR balanced mic / line switchable input
  • 1 6.3mm balanced jack line input
  • Low lifetime cost
  • Excellent reliability
  • 5 year warranty
  • Unparalleled sound quality
  • Metal loss corrector
  • Rack mount brackets included
  • Free technical support
Specifications

Perimeter Loops – Area Coverage (maximum)

Capable of driving the largest practical perimeter loops – theoretical area coverage >1000m2 for square areas, >1300m2 for rectangular areas, though the practical limit may be set by the installation environment. Ampetronic design tools and support are available to check the expected performance for your application.

Combined systems for very large areas

Multiple ILD1000G amplifiers can be combined using Ampetronic ILC Parallel DriveTM technology to drive systems in excess of 4000m2
Contact Ampetronic support for details.

Maximum Cable Length

The ILD1000G is designed for SINGLE TURN loops for optimum audio quality.
For loops with DC resistance from 0.5 to 3.0Ω , impedance to 3.5Ω
Maximum cable length is dependent on cable type and on the application:

Cable type Maximum Cable Length (m)
Normal Use* Transient Speech*
1.0mm2 copper 132 153
2.5mm2 copper 181 230
4.0mm2 copper 188 246
1.8mm2 flat copper tape 233 271



* Short term speech (e.g. service counter, airport PA system) can cope with limited clipping at high frequencies – Ampetronic recommends delivery of full current up to 1.2kHz for these applications.
Longer term usage or signals with music or high quality audio must deliver full current to at least 1.6kHz to prevent fatigue and give acceptable intelligibility. Many commercially available systems do not deliver sufficient voltage to reproduce critical high frequencies – ask us for more details.

INPUTS

Power 120W 230V AC nominal, 45-65Hz [120V option available]
Power switch and LED indicator on front panel
Input 1 XLR balanced microphone input for 200-600Ω microphones;
15dB user selectable gain boost; + 15V DC phantom power (selectable); sensitivity – 55dBu; front panel recessed gain control
Input 2 Selectable microphone / line XLR balanced input, switched between microphone and line on the rear panel. Microphone specifications as for input 1
Line specifications: 15dB user selectable gain boost;
sensitivity -30dBu; overload protected; phantom power disabled in line mode; front panel recessed gain control
Input 3 Line input 6.3mm jack socket balanced line input; sensitivity -30dBu;
overload protected, front panel recessed gain control
Link I/O 6.3mm jack socket insert point for connection of SP5 phase shifter
0dBu signal can be used for recording

OUTPUTS

Drive voltage 31.8Vrms 45V peak at maximum output current
Drive current • 9.2Arms (13Apk) continuous 1kHz sine wave peak >13A
• Short term peaks >19A
• Front panel recessed control
• Drive current indicated on 6-LED display in 3dB increments
Loop connector Neutrik NL4 Speakon (supplied)
Loop monitor Provides access to actual loop current via a 3.5mm stereo
headphone connector on front panel
Status A pair of isolated relay contacts to indicate system status;
fault = open circuit: system O.K. = short circuit



AUDIO SYSTEM

Frequency response 80Hz to 6.5kHz
Distortion THD+N
Automatic gain control The AGC is optimised for speech. Dynamic range >36dB
Metal loss correction Corrects system frequency response due to metal structures in a building.
Gain constant at 1kHz, adjustable gain slope from 0 to 3dB per octave. This does not compensate for signal loss from metal structures which can be significant.

ADDITIONAL FUNCTIONS

Fault monitoring Three LED fault indicators on the front panel;
• Overload – delivering over the rated current or voltage
• Overheat – unit is too hot (mutes output signal)
• Loop error – short circuit / open circuit error
Status Contact A pair of relay contacts are provided for remote fault monitoring
Ancillary To supply Ampetronic ancillary units ±15V DC 0.15A power outlet on rear panel
Cooling Forced ventilation. Air intake on left panel, air ejection at rear



PHYSICAL

Dimensions Full width 1U 19″ rack mount
Width 430mm Depth 220mm Height 44mm
Mounting options • Freestanding
• 1U 19″ rack mount (brackets included)
• Wall mounting (requires additional brackets)
Weight 3.75kg
Environment IP20 rated; 20 to 90% relative humidity; 0 to 35ºC
Specifications (PDF)

Click here to open datasheet in a new tab

Standards

Standards compliance

The ILD1000G is CE marked to all relevant safety and EMC standards.
All Ampetronic amplifiers can be used to create a system that meets the requirements of IEC118-4 and the relevant recommendation of BS7594, however the design and installation of the system is equally important to meet these Induction Loop Standards.
Some Ampetronic products are CSA registered for sale in the USA and Canada – contact Ampetronic for details.

Click here to contact us for more information
