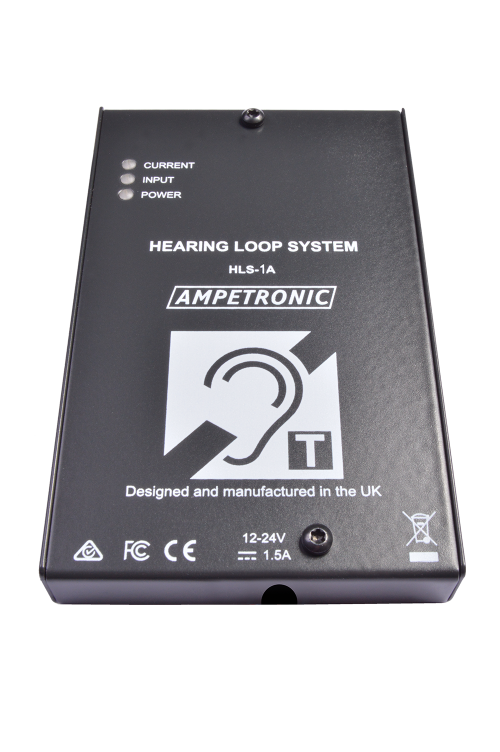

HLS-1A hearing loop system

HLS-DM1 in Metal Enclosure
Part code: HLS-1A

The Hearing Loop System 1A features a DM1 Induction Loop driver in a steel enclosure. The unit is designed to be integrated into communication systems such as elevators, intercoms, help points and kiosk systems etc. It is backed by Ampetronic’s 5-year warranty and free technical support.

hidden tab
Features
  • Compact & lightweight Ideal for low profile OEM integrations
  • Low power consumption & simple integration
  • Area coverage of up to 56m2 Two turn perimeter loop @ 1:1 ratio
  • Localised area loops Counters, walls, panels etc
  • Low lifetime cost. Excellent reliability, 5 year warranty & free technical support
  • Power supply 12-24V DC
  • Transformer isolated input
  • Mic input
  • Suitable for internal & external panel integration
  • Metal loss correction
  • Secure steel enclosure
  • Unrivalled intelligibility
Specifications (PDF)

Click here to open datasheet in a new tab

HLS-1A hearing loop system
The HLS-1A uses efficient class D current drive technology to reduce power consumption and heat output. It is the only small area induction loop driver capable of reliably driving most practical local area loops to meet the IEC60118-4 Standard even where available power or allowable heat is limited, e.g. connecting to equipment that uses a PoE supply. The transformer isolated balanced input allows simple connection to all intercoms, help points and kiosk systems, making the HLS-1A the obvious choice for any quality intercom system.

Applications include:

  • Intercom systems for most environments:
    1. Lifts / elevators
    2. Help & information points
    3. Refuge points
    4. Door entry systems
    5. Car parks & toll booths
    6. Security barriers & drive throughs
  • Information points & kiosks
  • Interactive exhibits
Power supply and consumption
  • 12-24V DC: Typical local DC supply inside equipment where another supply is already present.
Whilst the HLS-1A draws less than 2.9W @ 12V DC with typical signals, you should still check that any existing supply has enough spare capacity.
  • Compact & lightweight Ideal for low profile OEM integrations
  • Low power consumption & simple integration
  • Area coverage of up to 56m2 Two turn perimeter loop @ 1:1 ratio
  • Localised area loops Counters, walls, panels etc
  • Low lifetime cost. Excellent reliability, 5 year warranty & free technical support
  • Power supply 12-24V DC
  • Transformer isolated input
  • Mic input
  • Suitable for internal & external panel integration
  • Metal loss correction
  • Secure steel enclosure
  • Unrivalled intelligibility

The HLS-1A is CE marked to indicate compliance with relevant product safety and EMC standards.

Loop Performance

The HLS-1A will allow an Audio Frequency Induction Loop system that meets the requirements of IEC 60118-4 to be created, if the system is specified, installed and commissioned in an appropriate manner, including observing Ampetronic instructions.

Datasheet & Specifications

All information specified on this datasheet has been complied in accordance with the IEC 62489-1: 2010+A1:2014 Standard and reflects actual performance in realistic applications.

Installation Advice:

Group connections to input 1/2 with DC power cabling. Keep the loop feed cable separate from other connections.When mounting, use appropriately sized screws for your installation application; and washers when necessary. The enclosure has two screw holes, these can be easily accessed by removing the front of the enclosure.
