ILC4 combining unit

ILC4 combining unit
Part code: SILC04 (obsolete)

Modern amplifiers and design approaches including Ampetronic’s flagship C14-2 loop driver mean there is rarely a requirement for products such as the ILC or CTU.

If in doubt, please contact Ampetronic for specification advice.

In the rare occasions where a suited system cannot be designed with standard amplifiers alone, Ampetronic still have the expertise to develop a bespoke solution for your project.

hidden tab
Specifications (PDF)

Click here to open datasheet in a new tab

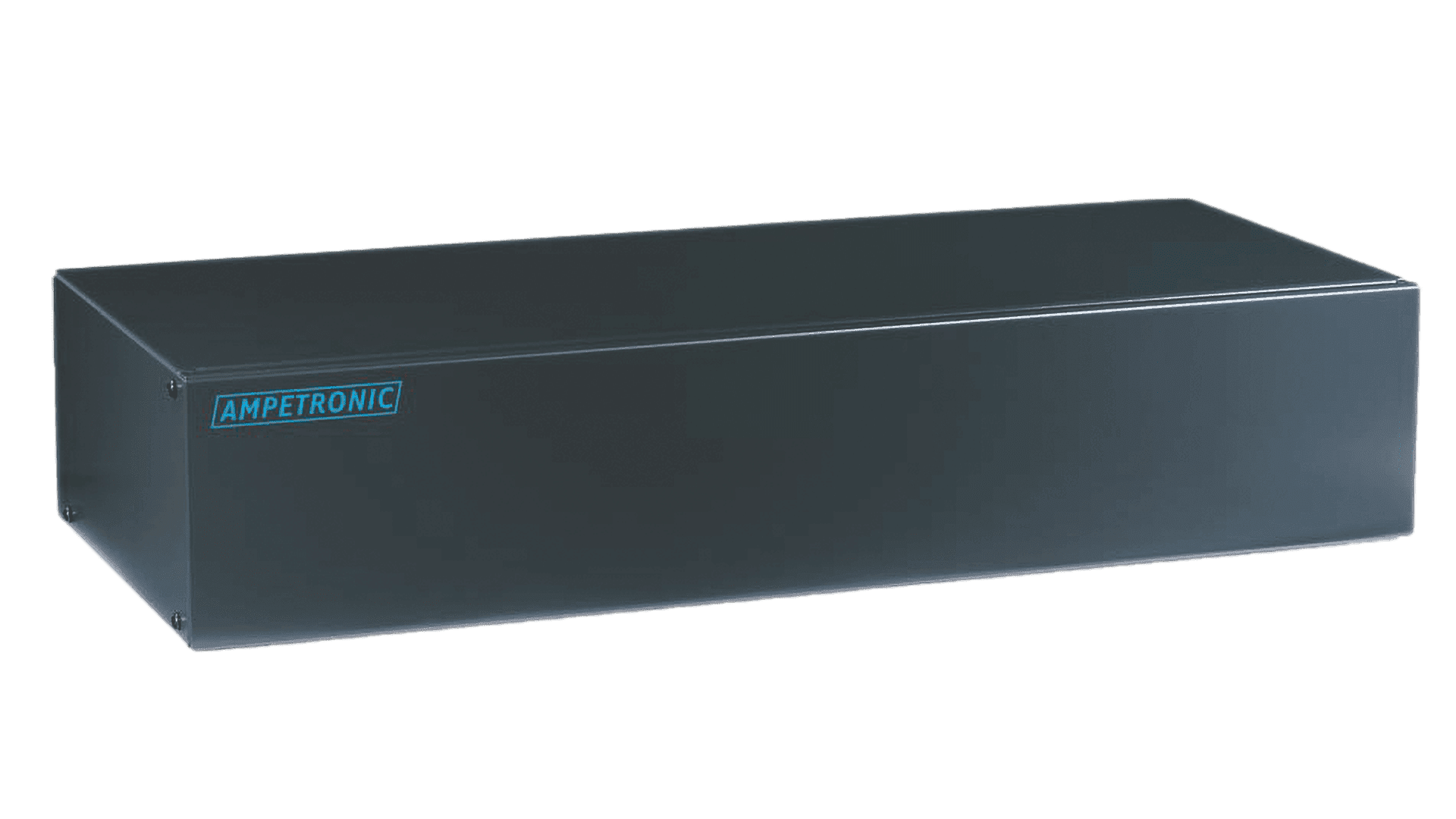

ILC4 combining unit

The ILC4 is integral to Ampetronic’s Parallel drive™ technology and is designed to hold up to 4 ratio transformers. The unit is designed to sum the output currents of multiple loop drivers to cope with high current and voltage loop demands. The units are factory configured to match the loop amplifier(s) with the actual loop impedance for maximum efficiency. This enables very large areas to be covered; it can also be used with loop applications where very high metal loss is expected. Using the parent – child system found on our professional loop driver product range, areas up to 4000 m² (43000 ft²) can be successfully covered.

Always contact Ampetronic when considering the use of the ILC4 as there are a wide range of transformation options. The ILC4 is built into a standard 2U high rack mount case supplied with rack mount hardware.

Product code: SILC04 (obsolete)

hidden tab
Specifications (PDF)

Click here to open datasheet in a new tab
