HLS-2D Metal Loss Test Driver

Metal Loss Test Driver

Part code: HLS-2D

Easily determine the correct loop system for the room
Preset output level ensuring consistent test results
Compact and lightweight

Combined with the Loopworks Measure R1 Field Strength Meter, the HLS-2D Metal Loss Test Kit delivers a preset output level to give consistent test results. Ideal as a quick and simple site assessment tool.
The HLS-2D comes with a 12V power supply but can also be used with a suitable 12V battery. It uses efficient class D current drive technology to reduce power consumption and heat output.
It is the only truly portable loop test driver that is capable of generating test signals to the IEC60118-4 Standard. The 4mm banana output sockets (included) allow simple connection to test cables.
The unit has a 5 year warranty and free technical support.



Images / Video

Design / Specify

hidden tab

Features

Compact and lightweight .Ideal for loop testing in all environments.
Low power consumption
Quick and simple operation and set up with industry standard connectors
Test area coverage of up to 45m²
Low lifetime cost
Excellent reliability, 5 year warranty and free technical support.
12V Power supply. Can be used with a suitable 12V battery (not included) for totally portable testing.
Transformer isolated inputs
Preset output level, reducing set up and testing time
Secure steel enclosure
Clear and strong signal output
Can be used to test existing loops and for powering a temporary loop for small shows, exhibitions, talks, etc.

Standards

Safety, EMC
The HLS-2D is CE marked to indicate compliance with relevant product safety and EMC standards.

Loop Performance
The test kit is the simplest and quickest way to assess whether an induction loop will perform to the IEC60118-4 standard.

Datasheet & Specifications
All information specified on the datasheet has been complied in accordance with the IEC 62489-1: 2010+A1:2014 Standard and reflects actual performance in realistic applications.

Downloads

UP37941-1_HLS-2D_flyer

UP37940-2-HLS-2D_datasheet

UP17940-4-HLS-2D_Metal_Loss_Test_Procedure

Specifications (PDF)

Click here to open datasheet in a new tab



Specifications



Downloads



Book a demo



Images / Video

Design / Specify

HLS-2D Metal Loss Test Driver

Metal loss testing

Determining metal loss and background noise levels are important steps in designing hearing loop systems to avoid loss of an intelligible signal and to meet the IEC 60118-4 international standard.

To correctly assess an area for metal loss and background noise a temporary loop will need to be used in either a Perimeter loop or figure of eight MultiLoop configuration, depending on the estimated levels of metal in the building structure.

For this you will need a loop driver, a field strength meter, a loop cable, a signal source and a tape measure.

Carrying a full size loop driver around can be cumbersome and impractical to setup every time so Ampetronic developed the HLS-2D Metal Loss Test Driver.

The HLS-2D is a light, portable, loop driver with a preset output level to give consistent test results; and when used in conjunction with the Loopworks Measure R1 or Ampetronic FSM field strength meters, forms part of a quick and simple site assessment system.

Visit the following YouTube videos for Perimeter and MultiLoop test procedures:

HLS-2D Metal Loss Test Kit includes:

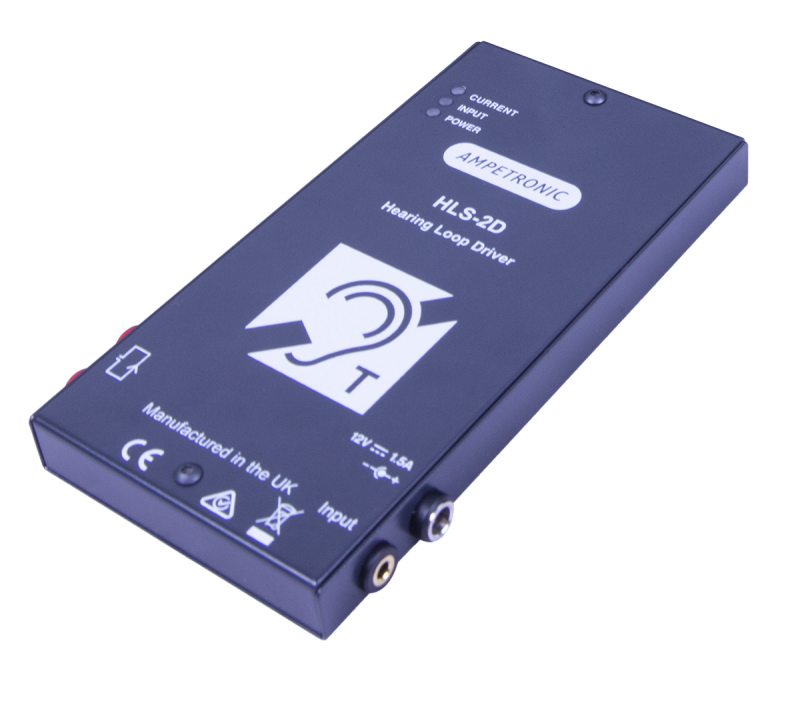

HLS-2D Driver
12V power supply
2x4mm connectors
soft case and full instructions

Compact and lightweight .Ideal for loop testing in all environments.
Low power consumption
Quick and simple operation and set up with industry standard connectors
Test area coverage of up to 45m²
Low lifetime cost
Excellent reliability, 5 year warranty and free technical support.
12V Power supply. Can be used with a suitable 12V battery (not included) for totally portable testing.
Transformer isolated inputs
Preset output level, reducing set up and testing time
Secure steel enclosure
Clear and strong signal output
Can be used to test existing loops and for powering a temporary loop for small shows, exhibitions, talks, etc.

INPUTS

Power

Standard format: 12V DC
Connector: 2.1mm DC Power socket, centre positive
Nominal voltage: 12V DC
Fuse: 1.5A PTC
Power Consumption (12V DC supply):

2.88W (240mA) continuous pink noise
9.2W (765mA) continuous sine
<0.6W (<50mA) quiescent
14.4W (1200mA) max short term peak

Indication:

LED in case

Input 1 & 2

Connector:

3.5mm stereo socket, both audio
channels are combined into the input
signal for the driver.

OUTPUTS

Loop Output	20V_RMS (28Vpk) at maximum output current per channel
Loop Output	Connector: 2 x 4mm banana sockets Preset Output: 2.5A_RMS Rated temperature limited Output current (pink): 1.5A_RMS Rated time for delivery: 1min Rated THD: <1% Output Impedance: >9Ω Current Indication: LED indicates >1A_RMS

AUDIO SYSTEM

Frequency Response

100Hz to 5kHz ±1.5dB relative to 1kHz at low level.

Automatic Gain Control

The AGC is optimised for speech. Dynamic range >36dB

Indication: LED in case

PHYSICAL

Dimensions	Width 77mm Length 150mm Height 16mm
Weight	272g
Environment	IP40: <90% relative humidity, -30 to 75 ˚C Heat dissipation <3W maximum, normally less

Safety, EMC
The HLS-2D is CE marked to indicate compliance with relevant product safety and EMC standards.

Loop Performance
The test kit is the simplest and quickest way to assess whether an induction loop will perform to the IEC60118-4 standard.

Datasheet & Specifications
All information specified on the datasheet has been complied in accordance with the IEC 62489-1: 2010+A1:2014 Standard and reflects actual performance in realistic applications.

UP37941-1_HLS-2D_flyer

UP37940-2-HLS-2D_datasheet

UP17940-4-HLS-2D_Metal_Loss_Test_Procedure

Test signals can be downloaded here:
