Applications include:
- Places where a hot works are not permitted
- Under floor Multiloops / Phased Array
Crimps and crimp tool
Crimps and crimp tool
Part code: See specifications for codes

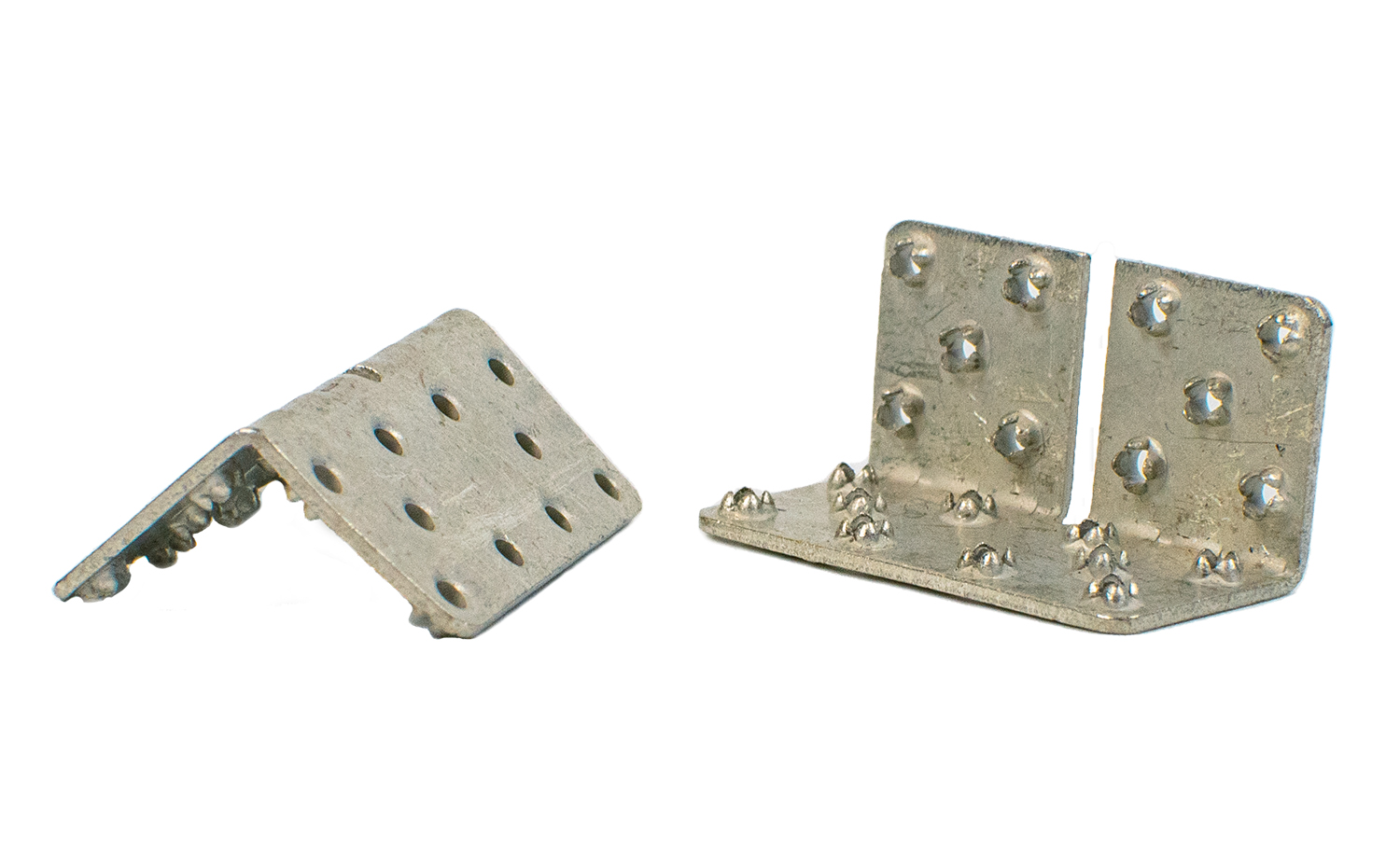

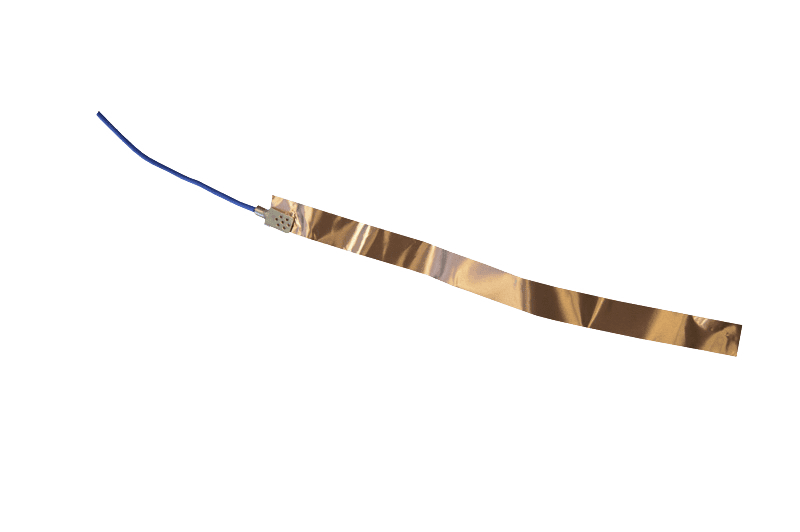

Cable crimps connect feed cables from a driver to flat copper tape loops in a quick, easy and effective manner. Crimps also help to negate the requirement for a hot works permit, which can sometimes be a struggle to acquire onsite when you need to solder the copper tape to the feed cables.

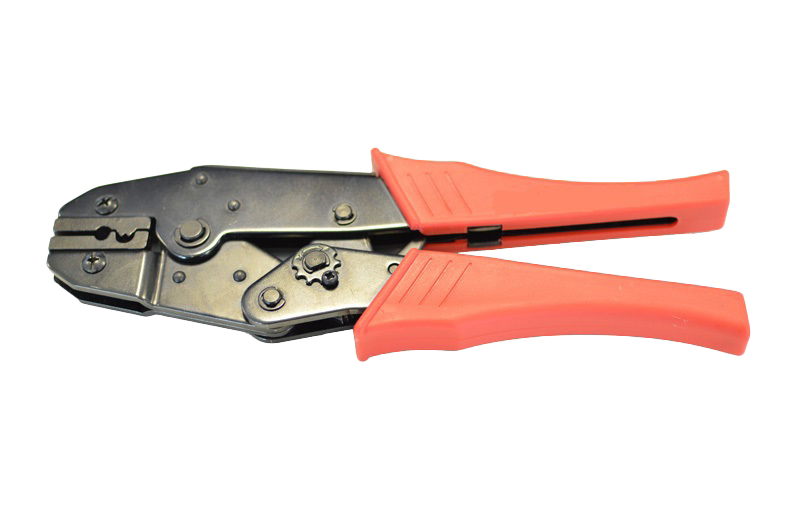

The crimp tool compresses the connector to the round feed cable and clamps the teeth of the crimp onto the copper tape. There are three different types of crimps, two for different gauge wires (12-10AWG and 16-14AWG) and one for extending lengths of copper tape.
hidden tab
Features
- Quick and simple to install
- Helps negate a hot works permit
- Different wire gauge sizes available
- Copper tape to copper tape crimps available
Specifications

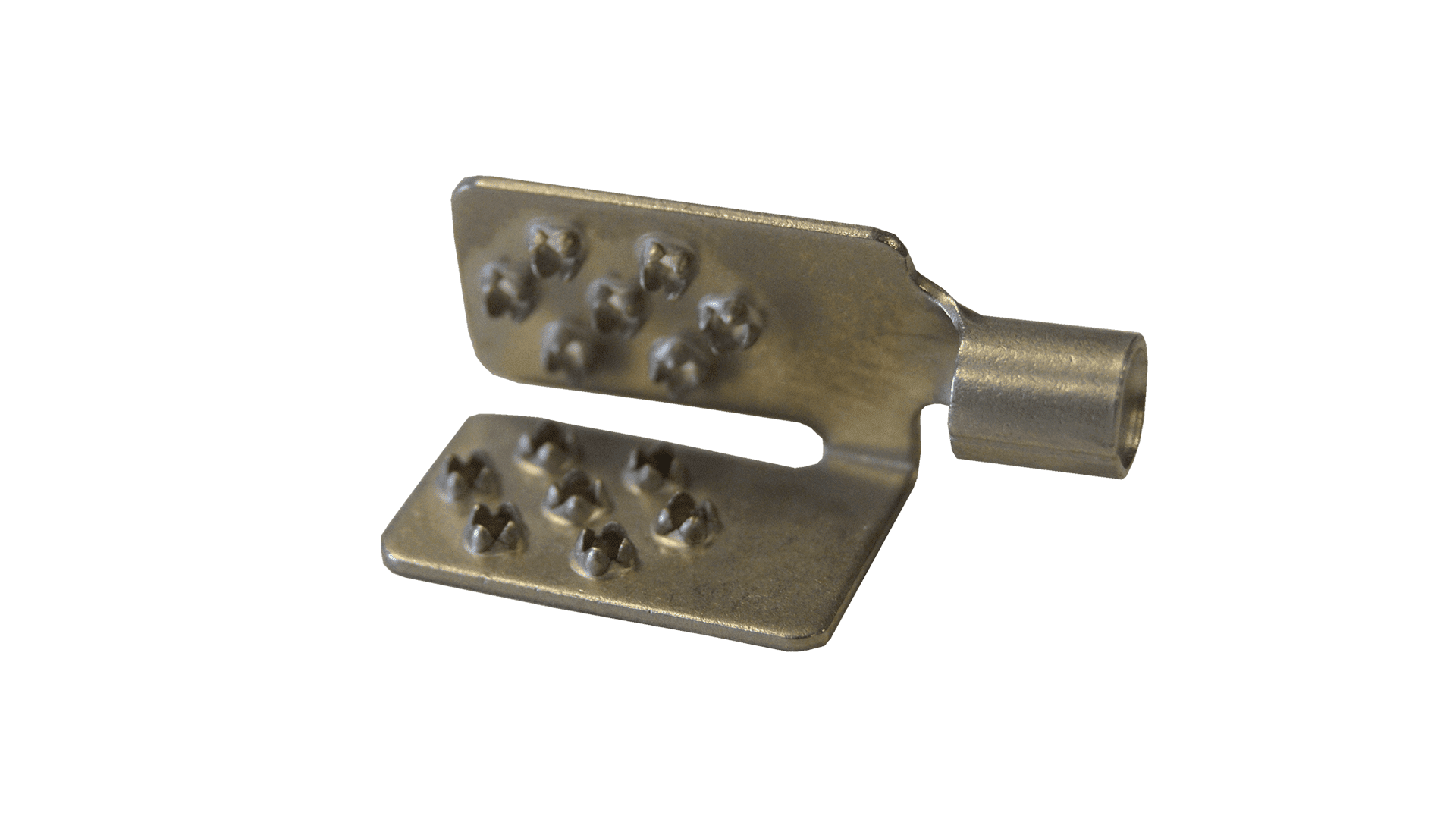

| Crimp – Feed Cable to Copper Tape, 12-10AWG | |
| Part Code: | FH50501 |
| Wire Gauge: | 12-10AWG (3.3mm² to 5.3mm²) |
| Insulation: | Not Insulated |
| Contact Plating: | Tin |
| Contact Material: | Copper |
| Size: | 27.1mm x 11.5mm |
| Inner Diameter: | 3.7mm |
| Crimp – Feed Cable to Copper Tape, 16-14AWG | |
| Part code: | FH50503 |
| Wire Gauge: | 16-14AWG (1.3mm² to 2.1mm²) |
| Insulation: | Not Insulated |
| Contact Plating: | Nickel |
| Contact Material: | Copper |
| Size: | 24.5mm x 11.5mm |
| Inner Diameter: | 2.2mm |
| Crimp – Splice Copper Tape to Copper Tape | |
| Part Code: | FH50502 |
| Insulation: | Not Insulated |
| Contact Plating: | Tin |
| Contact Material: | Copper |
| Size: | 24.5mm x 11.5mm |
Specifications (PDF)
Click here to open datasheet in a new tab
Crimps and crimp tool
- Quick and simple to install
- Helps negate a hot works permit
- Different wire gauge sizes available
- Copper tape to copper tape crimps available
| FH50501 | 12-10 AWG (3.3mm² to 5.3mm²) |
| FH50502 | Crimp – Splice Copper Tape to Copper Tape |
| FH50503 |
16-14 AWG (1.3mm² to 2.1mm²) |
| GJ00002 | Tool |
| Crimp – Feed Cable to Copper Tape, 12-10AWG | |
| Part Code: | FH50501 |
| Wire Gauge: | 12-10AWG (3.3mm² to 5.3mm²) |
| Insulation: | Not Insulated |
| Contact Plating: | Tin |
| Contact Material: | Copper |
| Size: | 27.1mm x 11.5mm |
| Inner Diameter: | 3.7mm |
| Crimp – Feed Cable to Copper Tape, 16-14AWG | |
| Part code: | FH50503 |
| Wire Gauge: | 16-14AWG (1.3mm² to 2.1mm²) |
| Insulation: | Not Insulated |
| Contact Plating: | Nickel |
| Contact Material: | Copper |
| Size: | 24.5mm x 11.5mm |
| Inner Diameter: | 2.2mm |
| Crimp – Splice Copper Tape to Copper Tape | |
| Part Code: | FH50502 |
| Insulation: | Not Insulated |
| Contact Plating: | Tin |
| Contact Material: | Copper |
| Size: | 24.5mm x 11.5mm |
hidden tab
Features
- Quick and simple to install
- Helps negate a hot works permit
- Different wire gauge sizes available
- Copper tape to copper tape crimps available
Specifications
| Crimp – Feed Cable to Copper Tape, 12-10AWG | |
| Part Code: | FH50501 |
| Wire Gauge: | 12-10AWG (3.3mm² to 5.3mm²) |
| Insulation: | Not Insulated |
| Contact Plating: | Tin |
| Contact Material: | Copper |
| Size: | 27.1mm x 11.5mm |
| Inner Diameter: | 3.7mm |
| Crimp – Feed Cable to Copper Tape, 16-14AWG | |
| Part code: | FH50503 |
| Wire Gauge: | 16-14AWG (1.3mm² to 2.1mm²) |
| Insulation: | Not Insulated |
| Contact Plating: | Nickel |
| Contact Material: | Copper |
| Size: | 24.5mm x 11.5mm |
| Inner Diameter: | 2.2mm |
| Crimp – Splice Copper Tape to Copper Tape | |
| Part Code: | FH50502 |
| Insulation: | Not Insulated |
| Contact Plating: | Tin |
| Contact Material: | Copper |
| Size: | 24.5mm x 11.5mm |
Specifications (PDF)
Click here to open datasheet in a new tab
